| Prod Model: |
light |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: |
LED City Color |
| Control: |
DMX 512 |
| Color: |
RGB |
| Mode: |
Master-Slave, Auto-Running |
| Zoom: |
Electronic Zoom |
| Warrenty: |
12months |
| Size: |
950X275X475mm |
| N.W: |
23kg |
| Emitting Color: |
RGB |
| IP Rating: |
IP54 |
| Beam Angle: |
30?? |
| Lifespan: |
8000 hours |
| Warranty: |
1 Year |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Input Voltage: |
220V |
| Power: |
1050W |

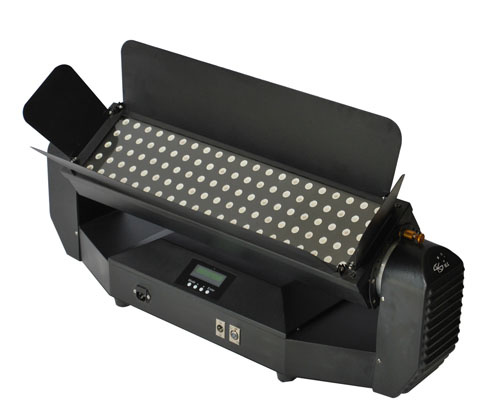

Product Description
Specifications:
1. Power supply: AC220V,50~60Hz , 5.5A
2. Power Consumption: 1100W
3. Rotation:by hand tilt.
4. Control system: DMX512
5. Color: R.35*10W+G.35*10W+B.35*20W
6. Luminous Flux. : R.35*300.lm; G.35*500.lm; B.35*150lm
7. Working life::>100000Hr
8. Water proof: IP55
9. Body Size: 950*275*475mm
10. Weight: 23Kg
Features
1. Automatically detect DMX512 signal.
2. Automatically detect if the digital temperature sensor is working normally, and report mal-function, ensuring the proper working of the light.
3. Noise reduction and auto-change of the fan speed under different working temperature.
4. The user can set the working temperature freely under different working environment.
5. Working temperature is shown on the light
6. Principal and subordinate operation function.
Menu
| [MAIN MENU] |
| DMX512 MODE |
| Address:XXX | XXX=001-512 | |
| AUTO-MODE |
| Strobe | Speed:X | X=1-8 |
| Change Color | Speed:X | X=1-8 |
| Fade in&out | Speed:X | X=1-8 |
| Cross Fading | Speed:X | X=1-8 |
| Static Color | RED,GREEN,BLUE,YELLOW,MAGENTA,CYAN,WHITE, ORANGE,PURPLE,Y-G,PINK,SKY-BLUE,CHOCOLATE,LIGHT BLUE,COILET,GOLD |
| Manual Dimmer | R:XXX
G:XXX
B:XXX | XXX=000-255 |
| System Setting |
| Real-time Temperature | +XXX C | Hot Sensor Error |
Channel Detail
| DMX512 Channels |
| Channel 1 | 000-255 | Dimmer |
| Channel 2 | 000-009 | No sense |
| 10-249 | Flash from slow to fast |
| 250-255 | Unchanging |
| Channel 3 | 000-255 | RED |
| Channel 4 | 000-255 | GREEN |
| Channel 5 | 000-255 | BLUE |
| Channel 6 | 000-10 | NO FUNCTION |
| 11-049 | Color Selection |
| 050-100 | Strobe |
| 101-149 | Color Changing |
| 150-199 | Color Fade |
| 200-255 | |
| Channel 7 | 000-255 | Marco Speed |
Guangzhou MLK Light Co., Ltd is an innovative manufacturers. We are established in 2003, a manufacturer professional in outdoor searchlight. We are your best team member to create perfect events and activities.
Our searchlight is widely used in fountain, skycrapers, landscape, theme park, hotel, TV tower, art festival, sport venue, gym and so on. Light your events, light up our dream!
