Prod Model: |
CPL-M1047 120W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Waterproof: |
Indoor |
Weight: |
14.5kg |
Watts: |
120W |
Certificate: |
CE |
Dimmer: |
0-100% |
DMX Chs: |
12 DMX Chs |
Housing: |
Plastic |
IP Rating: |
IP20 |
Strobe: |
Adjustable Speed Strobe |
Control Mode: |
Dmx Signal Control |
Certification: |
CE |
Light Source: |
LED |
Control Channel: |
18CH |
Voltage: |
220V |
Product Description

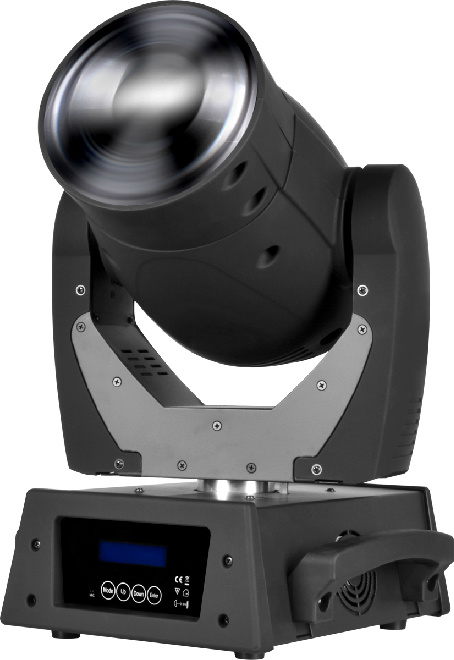

CPL-M1047 120W Stage LED Beam Moving Head Light
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1X120W Luminus White LED
Control Signal: DMX512, master-slaveand sound activated or auto operation
Control Channel: 12 DMX Channels
Power Consumption: 170W
Dimensions: 279(D)X301(W)X496(H)mm
Packing Dimensions: 490(D)X420(W)X375(H)mm
Net Weight: 11.5kg
Gross Weight: 14.5kg
Luminus 90W white LED unit (CBM-360-W)
3728FC/40125LUX (2.5m), 929FC/10000LUX (5m), 391FC/4200LUX(7.5m)
50, 000 hours lifespan and low power consumption
16 bit smooth and precise resolution for PAN/TILT movement
540° Pan and 270° Tilt movement
Scan position memory, auto reposition after unexpected movement
1 color wheel with 5 colors plus open
Variable direction rainbow effect with speed adjustable
1 static gobo wheel with 7 fixed gobos plus open
1 rotatable 5-facet prism with speed adjustable and variable direction
4° Projection beam angle Frost effect
0-100% linear dimmer with 1-18 times/sec high speed electronic strobe
LED shutter with variable speed
12 DMX channels
DMX512, master-slave and sound activated controllable or auto operation (8 built-in programs)
Blue background LCD display
Powercon IN/OUT
45° C max ambient temperature
IP20 protection rating
55dB at 3' dB rating
3-pin DMX connectors
