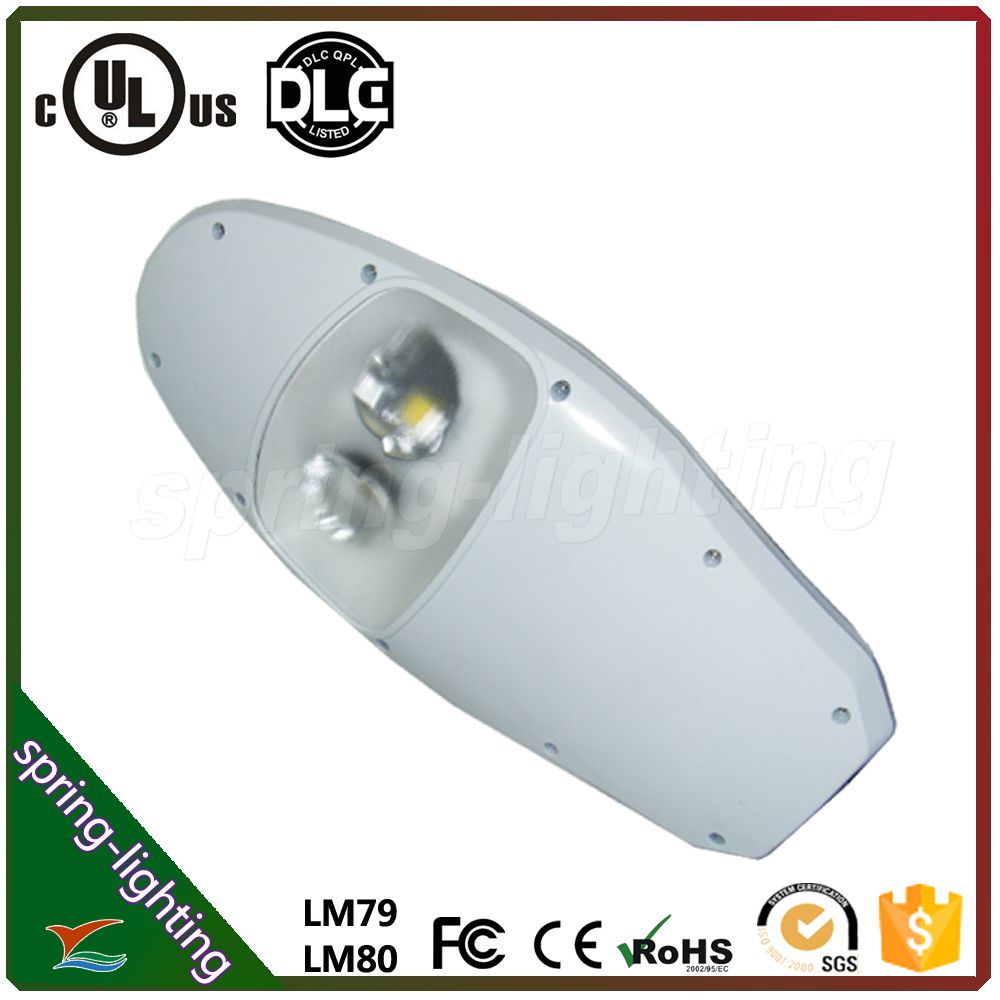

Item No: SPL-SL760S160W
Work Voltage: AC: 85-265V
LED Power: 160W
LED Chip: Bridgelux
Installation height: 6-8m
Power Factor(PF): >0.95
LED Efficiency: 90-100LM/W
LED Lumens: 1530LM
Fixture Efficiency: >95%
IP Grade: IP65
Color Temperature(CCT): 2700-7000K
Ambient Temperature: -40 C~55 C
LED Life: >50000H
Materials: Features a high purity aluminum reflector, housing and heat sink;
High strength tempered glass cover; High power LEDs; High efficiency imported LED driver
LED stree tlight /road light bring more benefits
Energy efficiency and Up to 60-70 % energy saving
Tough And Durable life > 50, 000.00 Hours and requires Minimum Maintenance
Good color rendering
Near natural color make people's visual comfort. NO glare beam.

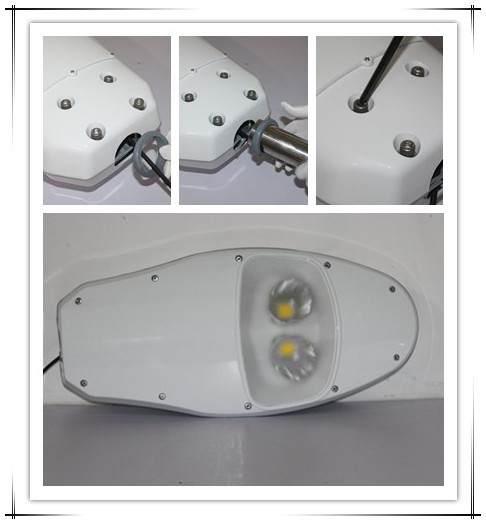

Easy installation
IP65 design. Die cast and jet waterproof. Suitable for lateral mounting on mast arms of 40-60 mm
Environmentally friendly.
Do not have lead and any other contamination. No light pollution and air pollution
Dedicated faceted optics to optimize beam control and maximize light output
High Power LED street light make a new and cost-less choice!
| Model number | SPL-SL760S160W
| color rendering index | WW: Ra> 68, PW/CW: Ra> 75 |
| LED consumptions | 156W | beam angle | 120 |
| System Consumption | 165W | working voltage | DC30-36V |
| Led initial flux | WW | PW | CW | input voltage | AC85-265V |
| 14080LM | 14400LM | 14130LM |
| power factor | > 0.9 | frequency range | 50-60HZ |
| total hamornical distortion | < 9% | led junction temperature | < 80° C |
| power efficiency | > 87% | working temperature | -25~45° C |
| light efficiency | > 91% | IP grade | IP65 |
| installation height | 8M | 10M | 12M | led working life-span | > 50000hrs |
| average illuminance | > 34.0LUX | > 33.6LUX | > 31.7LUX | certification | CE ROHS |
| illuminance area | 28*12M | 32*13M | 36*15M | packing dimension | 850*235*390mm |
| illminance uniformity | > 0.4 | net weight/gross weight | 14/15kg |
Spring-lighting Electronics Co., Ltd. is a professional manufacturer in R&D, manufacturing, marketing and service of LED lightings. Our main products include LED flood lights, LED streetlights, LED bay lights, LED panel lights, LED tube light, Corn LED bulb etc. All of our LED lights have certified by CE & RoHS, UL, CSA, DLC and etc. We research and process LED aluminum housing and other LED lighting accessories by ourselves as well. From raw material to finished product, every single process occurs within the walls of our own factory. Quality is never compromised.
Our company has gathered a bunch of qualified staff specializing in LED researching and managing, introduced advanced equipment and testing device, which make our products being perfect day by day and reach advanced standard in LED industry. We have passed ISO9001: 2000 quality control system, and the products obtained CE, RoHS, FCC certification. Our products have aging test at least for a continuous 48-72 hours before being released to delivery. Meanwhile, we have our own professional sales team. On these, we have obtained good reputation and serve customer from cover Asia, America, Europe, etc.
We strictly pursue our policy of systematized management, sustained improvement, prompt delivery, customers satisfaction, sincerely offering good service to all of our customers.
Welcome to contact with at any time!
We supply one-stop service for you from mould-design, lamp housing-diecast, power supply-design & production, finished product-assemble & after sale.
