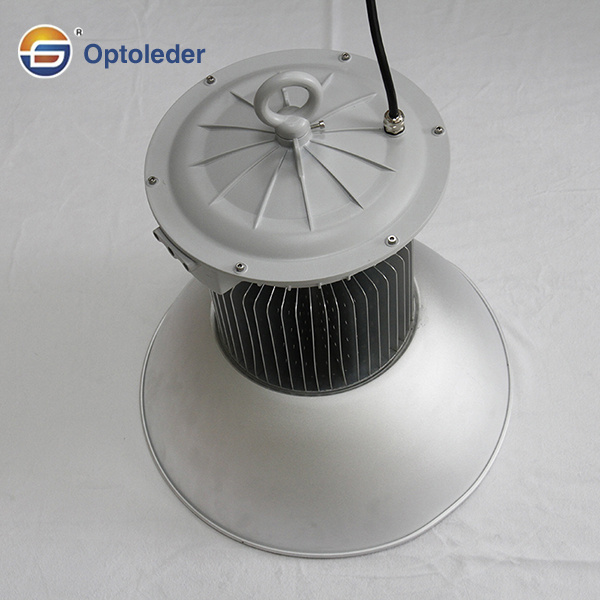

200W LED High Bay Light Toshiba LED
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Prod Model: |
GH-HB200W-A01-CC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features of 200W LED high bay light
1. MEAN WELL UL Driver
2. Chip: Toshiba
3. Power Factor: ≥ 0.95
4. Warranty: 5 years
Materials:
1. Anodic oxidation reflector and the design of patent heating body
2. Acrylic glass cover
3. Single high powerful LED light source(30W-200W)
4. High efficiency stable LED driver
Application:
Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. Item Size
| Model | GH-HB200W-A01-CC |
| Input Voltage | AC100V-240V |
| Freqency Range | 50Hz--60Hz |
| Tatal Harmonic Distortion | ≤9% |
| Power Factor | 0.98 |
| Power Efficiency | >89% |
| LED Working Voltage | DC30~36V |
| LED Quantity | 200 pc |
| LED Consumption | 200 W |
| Total Power Consumption | 200 W |
| LED Brand | Toshiba |
| Average illuminance | (height)6M | 188.5 lux |
| (height)8M | 106 lux |
| (height)10M | 67.84 lux |
| Illuminance Area | (height)6M | ¢4.83M Round area |
| (height)8M | ¢6.44M Round area |
| (height)10M | ¢8.06M Round area |
| Color Temperature | WW | 3000k--3500k |
| NW | 4000k--4500k |
| PW | 5500k--6500k |
| Total Lumen output | 17000 lm |
| Color Rendering Index | Ra>75 |
| Light Distribution | Symmetry and round |
| Light Design | LED+reflector |
| Junction Temperature | ≤80ºC |
| Working Temperature | "-40ºC~+55ºC |
| Storage Temperature | "-25ºC~+65ºC 25ºC optimum |
| IP Rate | IP54 |
| Working life-span | 50000Hrs |
| Net Weight | 7.5 kg/pc |
| Power line | 1 mm2 3 core cable |
| Connect wire | L (Brown) |
| N (Blue ) |
| G (Yellow and Green) |
| Color of lamp shell | Silver |
| The size of the lamp head package size | 370(mm) X 345(mm) X 345(mm) |
| The size of the reflector package (110°) | 550(mm) X 550(mm) X 370(mm) |
| The weight of the lamp head after packing | 5.5 kg |
| The weight of the reflector after packing | 23pcs/caton |
Shenzhen Optoleder Technology Co., Ltd., established in 2010, is an innovative and national high-tech LED lighting and LED package manufacturer in Shenzhen of China, where it is the LED supreme headquarter. Optoleder is going to be a top commercial LED lighting provider in the coming future with the support from our partners and customers based on our efforts.
Now we have four divisions, LED lighting division, LED package division, Hardware Division and Power Supply/Drivers division. Optoleder is developing into a top commercial LED lights provider of a total solution at a high and stable speed. A professional management team and the powerful production of 25, 000 square meter area with automatic and advanced production lines give our partners and customers best service and products under the strict quality control process. Mr., Zeng Xian Ping, who is Chairman of Optoleder has nearly 20 years experience of management for optics and chemicals company. He is the leader of this positive and creative team of Optoleder.
Main Products:
LED Bulbs, LED Spotlights, LED downlights, LED Tubes and LED panel lights, with CCC for China, ETL and UL for America, TUV, CE, RoHS for Europe and Asian countries, SAA for Oceania, and PSE for Japan, are well accepted in the world.
Innovative R&D Team:
Head of Engineering Department for LED lighting has more than 15 years of electronics and optics experience. This team is efficient and diligent for new technology of LED lighting, especially for dimmable technology. Now triac dimmers are popular in the world. Few manufacturers can make good compatible dimmable bulbs and spotlights, while we have a good solution of this type of dimmable tech. Compatibility and function are top in LED lighting field.
Passionate Sales Team,:
We sales team, with the average age at 25 years old, are passionate about LED lighting and positive to our sales jobs. We promise that we give customers best service and fastest response speed at a 24-hour hot line. Now we offer Chinese, English, Russian, Japanese, and Spanish speaking of considerate sales, which will let you feel our passion and profession.
Efficient Production Team:
Optoleder has more than 20, 000 square meter workshops with advance equipment and machines, which are imported from USA, Germany, Japan etc. Production workers have to pass the strict operation and training exam before working. All technicians have at least bachelor degree of technology with years of working experience. Now Optoleder is certified by ISO9000 with good management system.
Quality Control Process:
Optoleder's lighting products go through a full and strict quality inspection process with aging test of 24 hours and high and low voltage test after production, then they will leave the factory to partners and customers with good package and instructions.
Warmly welcome all fields of friends to visit our company and negotiate trade.
