| Prod Model: |
UP-MF3612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC100~240V, 50~60Hz |
| LED Source: |
10W High Power LED |
| Color: |
Red, Green, Blue, White 4 in 1 Full Colors |
| Color Effect: |
Real Aura LED Changing Effect |
| Zoom Angle: |
10°- 60° (Standard Angle); |
| Channel: |
12 Channel Simple Mode, 16 Channels Standard Mode; |
| Display: |
Friendly LCD Display |
| IP: |
IP20 |
| Shell Material: |
Aluminum Alloy Composites Plastic |
| Net Weight: |
9kg |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| Certification: |
RoHS |
| Light Source: |
LED |
| Control Channel: |
16CH |
| Voltage: |
220V |
Product Description

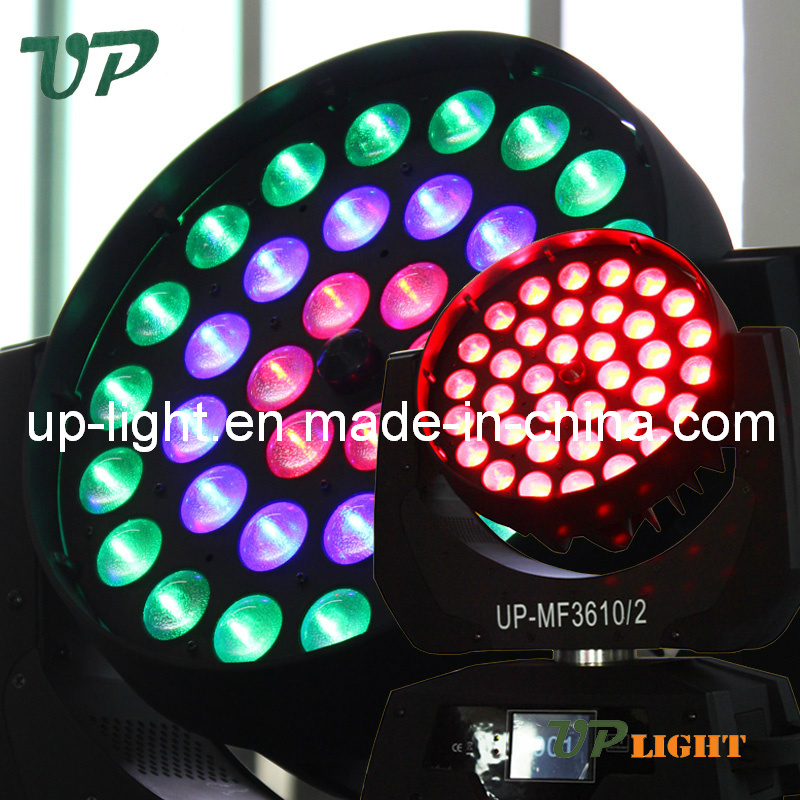

36PCS*10W 4in1 RGBW Aura LED Stage Light
Input voltage: AC100~240V, 50~60Hz;
Rated Power: 400W;
LED lamp: 10W high power LED with long life 80000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
LED Qty: 36 LEDS with Red, Green, Blue, White 4 in 1;
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode;
Channel: 12ch, 16ch two channel modes;
Color: Red, Green, Blue, White 4 in 1 full colors which is the most favorite color mixing way for lighting technician;
Lens: High optical transmission acrylic lens;
Zoom angle: 10° - 60° (standard angle);
Dimmer: 0~100% linear dimmer;
Strobe: Multi-function strobe effects from 1 to 25 times per second with the soft light function;
Material: Aluminum alloy plus plastic;
Maximum working terperature: 45° C
Maximum surface temperature: 60 ° C
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert,
DJ effect, disco effect, club effect, party effect etc;
Package size: 425× 295× 395mm
Gross weight: 9.5kg
|
20 Channels |
36 Channels |
Function |
|
CH 1 |
CH 1 |
Pan |
|
|
CH 2 |
Pan fine |
|
CH 2 |
CH 3 |
Tilt |
|
|
CH 4 |
Tilt fine |
|
CH 3 |
CH 5 |
Pan/filt speed |
|
CH 4 |
CH 6 |
Marco function |
|
CH 5 |
CH 7 |
Red 1 |
|
|
CH 8 |
Red 1 fine |
|
CH6 |
CH 9 |
Green 1 |
|
|
CH 10 |
Green 1 fine |
|
CH7 |
CH 11 |
Blue 1 |
|
|
CH 12 |
Blue 1 fine |
|
CH8 |
CH 13 |
White 1 |
|
|
CH 14 |
White 1 fine |
|
CH9 |
CH 15 |
Red 2 |
|
|
CH 16 |
Red 2 fine |
|
CH10 |
CH 17 |
Green 2 |
|
|
CH 18 |
Green 2 fine |
|
CH11 |
CH 19 |
Blue 2 |
|
|
CH 20 |
Blue 2 fine |
|
CH12 |
CH 21 |
White 2 |
|
|
CH 22 |
White 2 fine |
|
CH13 |
CH 23 |
Red 3 |
|
|
CH 24 |
Red 3 fine |
|
CH14 |
CH 25 |
Green 3 |
|
|
CH 26 |
Green 3 fine |
|
CH15 |
CH 27 |
Blue 3 |
|
|
CH 28 |
Blue 3 fine |
|
CH16 |
CH 29 |
White 3 |
|
|
CH 30 |
White 3 fine |
|
|
CH 31 |
Color temperature 3200~10000k |
|
CH17 |
CH 32 |
Color free integration |
|
CH18 |
CH 33 |
Zoom |
|
|
CH 34 |
Zoom fine |
|
CH19 |
CH 35 |
Strobe |
|
CH20 |
CH 36 |
RGBW Dimming |
