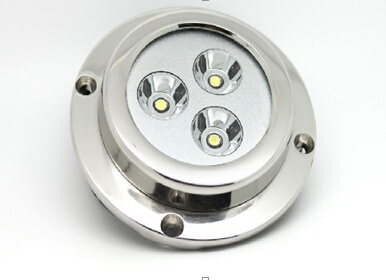

9W Waterproof Led Boat Lights /Marine Light ----316stainless Steel Marine Light
1. Power: 9W
2. Working Current: 1500mA
3. LED QTY: 3PCS
4. Beam angle: 180degree
5. LED Brand: Cree/Edison
6. Model No.: HX-ML9A01-3X3R/G/B/Y/W
7. Material: 316Stainless Steel
8. Voltage: DC9-14V
9. Warranty: One year
10. Life-span: Above 50, 000 hours.
Description:
3pcs, 9W High Power IP68 Waterproof Surface Mounted LED Marine light with 316Stainless Steel housing, waterproof, corrosion proof and shake resistance.
Applications:
Be used for Boat, Yacht, Surfboat (install to Engine brackets, under the gunnels, Boat trailers, Tail gates etc) and for Swimming pool, SPA, Pond, Fountain etc.
Installation Instruction:
Fix the light to the ship plate with 3X screws
The red line is positive pole, the others are negative pole.
Line length: 2M, diameter: 4.5mm
Competitive Advantage:
1). Super-class high power LED which is encapsulated by high efficiency and latest heat dissipation structure.
2). First-class stainless steel (316) or bronzeAB2 shell has excellent corrosion-proof, makes the light to use in sea water freely.
3). High luminous efficiency, life-span reaches 50, 000 hours.
4). Built-in or external constant current driver.
5). Over temperature automatic protection function. When environment temperature is more than 45 degree Celsius or the voltage is above 20V, the output current of built-in constant current driver will be shutdown in order to protect the LED without damage, and when environment temperature and voltage is normal, the lamp also work normal.
6). Professional waterproof design and prevent seawater wires.
7). Waterproof (IP68), Shake-proof, Energy-saving, Environment-friendly.
8). Easy to installation.
Note: The product is supplied with outside P. S. And the input voltage to P. S. Is DC9-14V. It is not allowed to light the lamp without connecting the offered P. S.
|
Part No. |
Power (W) |
Emitting Color |
Wavelength (n |
Working Voltage (V) |
Working Current (mA) |
Luminous Flux (Lm) |
Emitting Angle of Peak (θ) |
Size(mm) Dia.X H |
weight |
|
HX-ML3A01-3X3R |
3X3W |
Red |
620~630 |
DC9-14V |
600 |
230-270 |
180° |
90*19 |
450g |
|
HX-ML3A01-3X3G |
3X3W |
Green |
510~525 |
280-320 |
|
HX-ML3A01-3X3B |
3X3W |
Blue |
455~470 |
50-90 |
|
HX-ML3A01-3X3Y |
3X3W |
Yellow |
580~590 |
220-250 |
|
HX-ML3A01-3X3W |
3X3W |
White |
~~~ |
350-390 |
