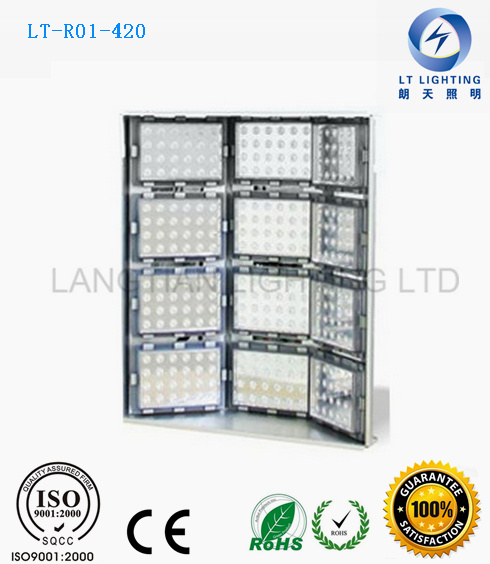

Super High Brightness 420W LED Light instead of 1000W HPSL
Company Profile
LT Lighting Limited is an enterprise jointly registered by a Hong Kong Company and a Taiwan Company, specializing in LED lighting development. Our company holds many product patents and patent licenses. We have established R&D centers in Jiangmen, Hsinchu, Taipo Industrial Estate in order to meet customer's individual requirements.
Feature
Super thin dissipation module & super saving technologies create high illumination efficiency (>70lm/w) & long life time (>3yrs); Accomplishing energy-saving &carbon-reducing effectively.
Innovative modular light engine design creates more application possibilities, easier replacements and saving maintenance cost
Optimum optical design provides high illumination efficiency &minimum illumination decay (<3% within 1yrs)
Comply with IP 67 standards and anti- gale anti- vibration design
Green & eco-friendly design guarantee the luminary conform to ROHS specifications.
Typical Applications
High Mast Lighting for Harbor Container Terminal
High Mast Lighting for offshore oil rig
Highway Lighting applications
Industrial Lighting (Golf Course, Tennis Court & Stadium etc)
Sport Lighting (Golf Course, Tennis Court &Stadium etc. )
Urban Landscape /Landmark /Bridge /Architecture /Garden Lighting
| Item# |
| LT-R12-T1-288 |
| LT-T12-T1-360 |
| LT-R01-420 |
| LED Qty |
| 288×1W LED |
| 360×1W LED |
| 288×1.5W LED |
| LED Color Temperature |
| 2700K-3500K/4000K-5000K/5000K-6500K |
| 2700K-3500K/4000K-5000K/5000K-6500K |
| 2700K-3500K/4000K-5000K/5000K-6500K |
| LED Efficiency |
| 110-140lm |
| 110-140lm |
| 110-140lm |
| Lamp Efficiency |
| 70-90lm/W |
| 70-90lm/W |
| 70-75lm/W |
| Illumination |
| 20160-25920lm |
| 25200-32400lm |
| 29400-31,500lm |
| CRI |
| 70-85 |
| 70-85 |
| 70-85 |
| Beam Angle |
| 30°/45°/60°/90° |
| Electrical Spec |
|
|
|
|
|
|
| Operating voltage |
| AC100-240V 50/60Hz |
| AC100-240V 50/60Hz |
| AC100-240V 50/60Hz |
| Power Factor |
| >0.9 |
| >0.9 |
| >0.9 |
| Power Consumption |
| 288W |
| 360W |
| 420W |
| IP Rating |
| IP65 |
| IP65 |
| IP65 |
| Operating Temp |
| -40~50 |
| -40~50 |
| -40~50 |
| Operating Humidity |
| 10~90RH |
| 10~90RH |
| 10~90RH |
| Net Weight |
| 18±0.2KG |
| 18±0.2KG |
| 18±0.2KG |
| Limited Warranty |
| 50000h |
| 50000h |
| 50000h |
| Dimension(mm) |
| L686×W585×H283 |
| L686×W585×H283 |
| L686×W585×H283 |
Jiangmen LT lighting Co., Ltd is located in Jiangmen City, Guangdong Province, China. We are specialized in LED Lighting developing, manufacturing and providing technical support and solutions, with the strength of high pole lamp, shockproof LED lighting, explosion-proof light, tunnel light, spotlight, wall washer, downlight, global bulb and many other indoor & outdoor LED lightings, with high quality and competitive price.
Our team has experienced experts and highly talented professional technicians. They all have doctorate/master' S degree and decades of experiences in LED research. We also have many patents, including heat-dissipating structures, nanomaterials, high-power sources and others.
Our products are widely use in aviation, navigation, port, street, commerical, building and many other places, which are also popular in Europe, Japan, USA, Asia Pacific and other countries. Main projects includes: Upgrade vehicle displays of public transport systems in North America; Replacement of the tranditional lamp to LED lamp for Boeing Co., Airbus; Italy Marco Polo yachts; Jiaguang Jiatong Road; Hongkong Science& Technology Parks; Taiwan Hsinchu Science and Industrial Park; Taipei Traffic intersection test system and others.
We insist on the idea of "efficiency, integrity, service, humanity" & "learn from advantage, and surpass the similar. " We have unique enterprise culture and mature management concept.
We have been making every effort to become a top-rank LED manufacturer and supplier in China. Look forward to the future, we will strive to be the leading company with great competitive ability, also make a contribution to harmony of environmentally friendly society and the progress of human civilization.
