| Prod Model: |
DS-3102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lighting Source: |
Bridgelux |
| Beam Angle: |
150deg |
| Working Lifetime(Hour): |
50000 |
| IP Rating: |
IP65 |
| Color Temperature: |
2700-3200k, 4000-4500k, 5800-6800k |
| Lamp Body Material: |
Aluminum Radiator Body + Iron + PC Cover |
Product Description

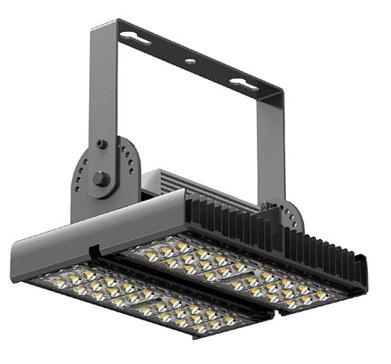

60W Outdoor LED Lighting LED Tunnel Light
Specifications
1 watt range: 60w 90w
2. AC100-240V
3, excellent heat dissipation
4, Bridgelux led chips
Basic Spec:
1.60w led tunnel light
2. Led chips: Bridgelux.
3, lumens efficicency: 90-95lm/w
4. PF>0.9; LED driver efficency: >88%
5. Dimesion: 255*298*278mm
Detail spec:
1) Item number: DS-3102
2) input voltage: AC100-240V
3) Total Harmonic distortion<9%
4) LED Power consumption: 57W
5) Total system consumption: 60W
6) LED light efficiency: 90-100LM/W
7) LED initial lumens: 6000LM
8) Evenness degree >0.8
9) Color rending index>80Ra
10) Light Distribution curve: Similar the batwing/ rectangle light spot
11) Light design: LED + Reflector secondary light distribution
12) Warming node of the LED<75deg. Celsus
13) Operation Temperature: -40deg. To + 50deg celsus
14) Grade of protection: IP65
15) Life-span of the LED> 50000H
Application
The LED TUNNEL lights can widely be used in the road tunel, construction site, Airport, public square, road, Brige, and the mining area zone.
|
DS-1202 |
Φ 50*57.8mm6W COB spotlight ; 220V ; 2600-2850K/5800-6300K ; 450LM ; 80Ra ; 60 ° ; GU10 ; |
inner box size 73*56*56 unit net weight 58g unit gross weight 70g |
290*280*280mm 100pcs/CTN |
Equivalent of 50W halogen spotlight |
CE&Rohs |
|
DS-1203 |
Φ 50*52mm ; 6W COB spotlight ; 100-240V ; 2600-2850K/5800-6300K ; 450LM ; 80Ra ; 60 ° ; GU5.3 |
inner box size 73*56*56 unit net weight 52g unit gross weight 70g |
290*280*280mm 100pcs/ctn |
Equivalent of 50W halogen spotlight |
CE&Rohs |
