| Prod Model: |
WH32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wh32 |
| LED: |
CREE Xm-L U2 LED (Max 1000 Lumens) |
| Color Temperature: |
6500k |
| Three Output Levels: |
High> Low>Strobe |
| Lamp Life: |
100000 Hours |
| Lens: |
Explosion Proof 6mm Polycarbonate Board |
| Color: |
Black |
| Battery: |
26650 Li- Ion Battery *2 in Canister |
| Operation Voltage: |
6V to 10V |
| Waterproof: |
100 Meters Underwater |
| Power Supply: |
Rechargeable Battery |
| Switch: |
Back Push (',on/off) |
| Battery Type: |
Lithium Battery |
| Certification: |
FCC |
| Usage: |
Diving |
| Material: |
Aluminum Alloy |
| IP Rating: |
IP68 |
| Runtime: |
High: 3h, Low:6h, Strobe:4h |
Product Description

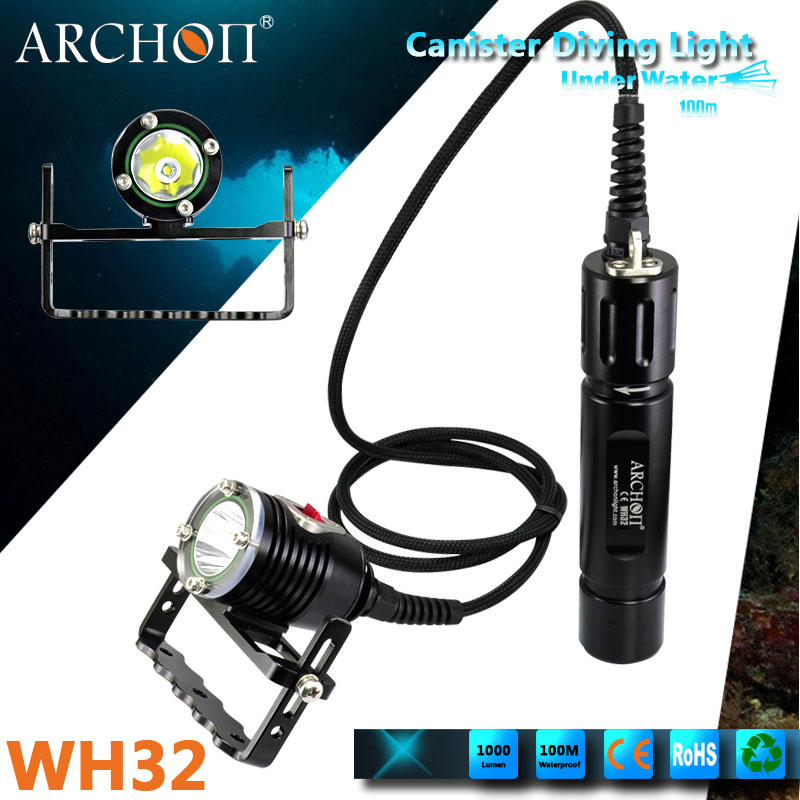

Model: Wh32
Bulb: CREE XM-L U2 LED
Brightness: 1000 Lumens
Color temperature: 6500k.
Three output levels. High> Low>Strobe
Runtime: High: 3H, Low: 6H, Strobe: 4H
Lamp Life: 100000 Hours
Reflector: Glossy Aluminum reflector, high temperature industrial processes.
Lens: Explosion proof 6mm Polycarbonate Board.
Back pressure sealed system
Angle of light beam 8° Hot spot, 110° Periphery
Body material: Durable aircraft-grade aluminum.
Surface treatment: Premium Type III hard-anodized anti-abrasive finish.
Color: Black
Battery: 26650 Li- ion battery *2 in canister
With battery over-discharging protection, polarity reversing protection
Operation voltage: 6V to 10V.
Waterproof: 100 meters underwater
Dimensions: Light head: 70mm (length) *46mm (dia. Of head);
Canister: 166mm(length)*36mm (dia. Of body)
BATTERY INSTALLATION
1. Remove the top cover of the canister by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by the polarity stickers.
3. Mount the cover by turning clockwise.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green in the free-load status.
2. Put the battery in the slot of the charger.
3. The indicator light is red if the battery is not fully charged; It will turn green after fully charged.
4. Take out the fully charged battery and use them in the canister.
ON/OFF
Push the switch forward to activate the light.
The switch will go back to original position automatically.
MODES CHANGING
Successive switch ON-OFF within two seconds to cycle through high, low, strobe.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged o-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the o-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.
WARRANTY RETURN POLICY
Please contact your local distributor or retailer for information on how to handle your warranty items.
REPLACEMENT PARTS
CAT# DESCRIPTION
WH328 O-ring
WH329 Lens
