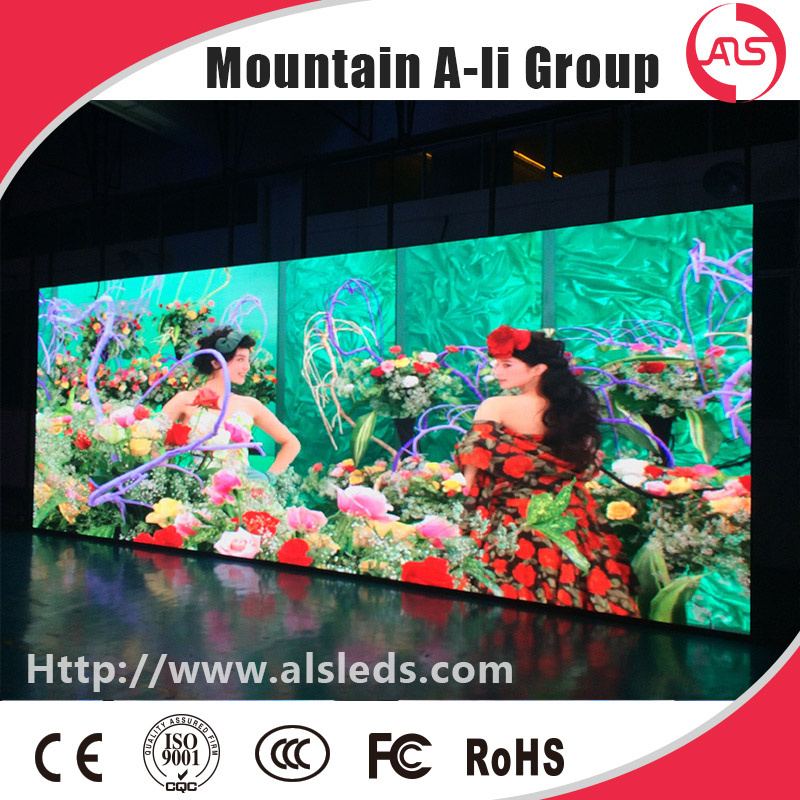

| Prod Model: |
P10mm LED display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
P10 Full Color |
| Module Size: |
160mm*160mm |
| Pitch: |
10mm |
| Scan Method: |
1/4scan |
| Module Resolution: |
16dots(W)*16dots(H) |
| Max Power: |
20W |
| Interface Way: |
Hub75 |
| Pixel Configuration: |
1r1g1b |
| Payment: |
T/T , Western Union |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
Product Description
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
| P10 Outdoor led sign for Sports Stadium technical parameter |
| Unit Module | Item | parameter |
| Model | P10 FULL Color Led Module |
| Module size | 160mm*160mm |
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 16dots(W)*16dots(H) |
| Max power | 20w |
| Module Thickness | 25cm |
| Module Weight | 0.5kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/4 scan |
| Interface Way | HUB75 |
| Brightness | ≥7500cd/m2 |
| Unit Module | Cabinet Size | 960mmx960mm |
| Cabinet Composing | 36pcs |
| Power supply Mode | 5V/40A 5V/60A |
| Cabinet Resolution | 96*96dots |
| Optimal Viewing Distance | 10M-50M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power | 350W/H |
| Max power Consumption | ≤700W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | Computer | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch
| Automatic Switch
|
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2years
6. Delivery time: 7-15working days
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
