Front Service Outdoor Full Color Double Face LED Display
| Price: |
US $ 1-3000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |

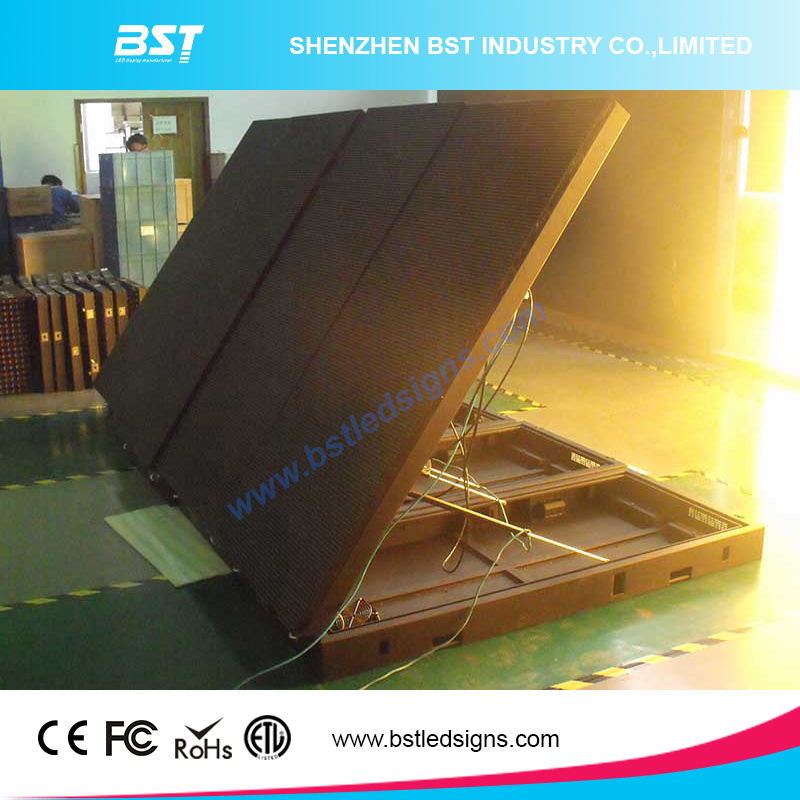

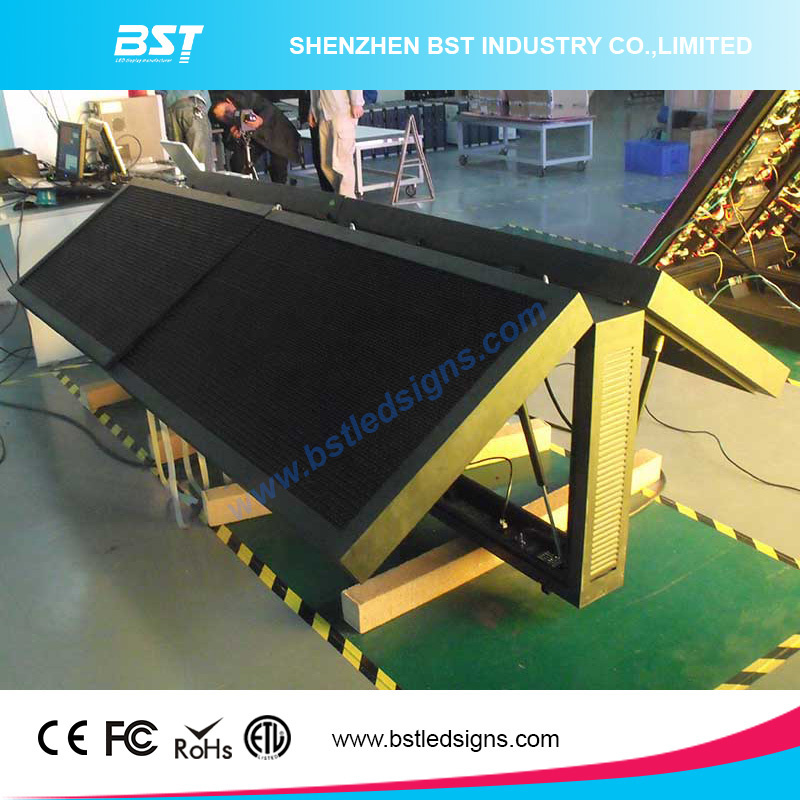

P10 Front Access/Front Service Outdoor Full Color Double Face LED Display( Single Color, Dual Color Available)
Key Benefits
1. Double Face LED Display
2. Front access/Front service LED Display
3. IP65 waterproof and dustproof
3. High brightness, visible even with direct sunshine;
4. High water proof and dust proof, IP65 both front and rear side
5. Having good lightening accordance and no mosaic;
6. Getting vivid effect within any position of the viewing range;
7. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
Specification| Model | OF-6 | OF-8 | OF-10 |
| Pixel Pitch | 6mm | 8mm | 10mm |
| Pixel Density | 27777 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| LED Type | SMD2727 | SMD3535 | SMD3535/DIP346 |
| Cabinet Dimension | 1152mmx960mm | 1280mmx960mm | 1280mmx960mm |
| Cabinet Resolution | 192*160pixels | 160*120pixels | 128*96pixels |
| Cabinet Weight | 72kg | 79kg | 79kg |
| Cabinet Material | cold steel | cold steel | cold steel |
| Ingress Protection(front/rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Brightness | >5500nits | >5500nits | >5500nits(>6500nits) |
| Viewing Angle(H/V) | 140°/140° | 140°/140° | 140°/140°(120°/70°) |
| Driving Method | 1/8 Scan | 1/4 Scan | 1/4 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz |
| Data Refresh Rate | >1500Hz | >1500Hz | >1500Hz |
| Gray Scale | 16bit | 16bit | 16bit |
| Power Consumption(avg.) | 250w/m2 | 250w/m2 | 250w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C | -20~50°C / -40~60°C | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH | 10%~90%RH / 10%~85%RH | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs | ≥1000hrs | ≥1000hrs |
| Life Span | ≥50000hrs | ≥50000hrs | ≥50000hrs |
| Pixel Failure | <0.0003 | <0.0003 | <0.0003 |
| Prod Model: |
6mm, 8mm, 10mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
25~30 Working Days |
| Warranty: |
2 Years |
| Service Method: |
Front Service/Front Access |
| OEM: |
Yes |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Pitch: |
6mm, 8mm, 10mm |
| Pixel Density: |
27777dots/Sqm, 15625dots/Sqm, 10000dots/Sqm |
| Scanning Mode: |
1/8 Scan, 1/4 Scan, 1/2 Scan |

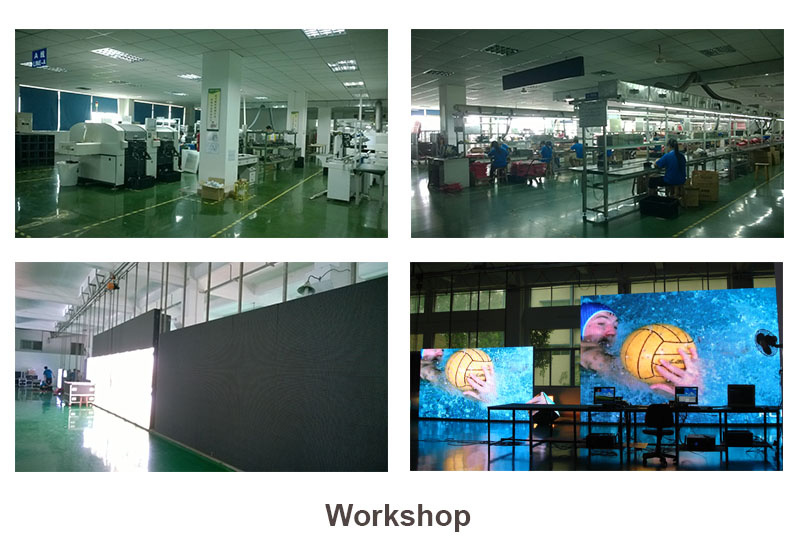

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
