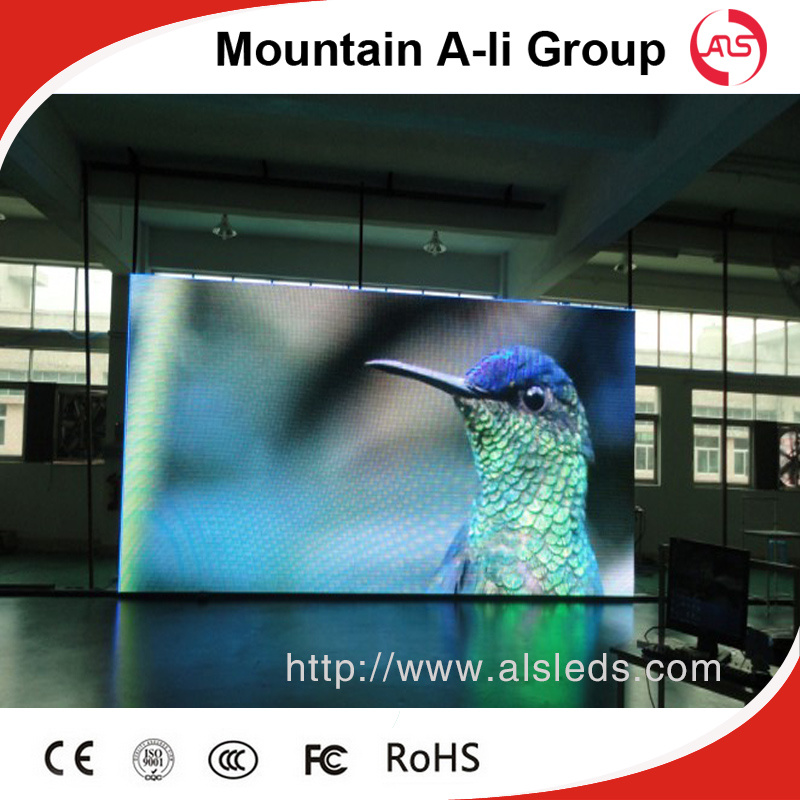

HD P2mm Indoor Full Color LED Video Display

                                                 HD P2mm Indoor Full Color LED Video Display



Product Features :


   1.Energy saving design, good cooling system, high definition, high cost, outstanding reliability and

    2: complete function by the majority of new and old customers favorite

   3:.Ultra-high refresh rate, support the camera recorder, to ensure a clear picture quality

   4.Quick editing of assembly, disassembly system, saving unloading time


HD P2 indoor led billboard with factory price techincal parameters
Unit Module	Item	parameter
	Model	ALS - P2 - 24S
	Module size	240mm*120mm*10mm
	Pixel Pitch	2mm
	Pixel Density	250000dots/m2
	Pixel Configuration	1R1G1B
	Package mode	SMD2121
	Module Resolution	120dots(W)*60dots(H)
	Max power consumption	18w
	Module Thickness	14mm(without magnet)  25mm (with magnet )
	Module Weight	0.18kg
	Driving Method	Constant Current Driving
	Scan Method	1/24scan
	Interface Way	HUB75E
	Brightness	≥1500cd/m2
Unit Module	dimension	480mm*480mm*98mm
	Quantity of Module	8
	Thermal discharge	fan 2pcs
	Power supply Mode	5V/40A* 2pcs
	Pixel per cabinet	240mm*240mm
	Thickness	98mm
	Optimal Viewing Distance	2M-10M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	20%-90%
	Operating Voltage	AC220V±10%
	Average power consumption	≤200W/m2
	Max power Consumption	≤300W/m2
	Current	≤20mA (Single LED )
Control system	CPU	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥400HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800*600/1024*768



 Using Range:

   1 :Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government

   2:agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,

   3:eletric power, galleries and other publicity, advertising, information diseemination, the guide places.


Why choosed us:

   1.Price Advantage: No.1 cost effective

   2.Quality advantage: serious QC control system  , best material

   3.Service advantage: after service dept& Tech Dept. Perfect after sales system

   4.ISO9001,CE , CCC,ROHS Certificates


Trade Terms:

   1.Packing: Anti-shaking wooden cabinet /Air flight case/carton

   2.Shipping port: Shenzhen. China

   3.Shipping freights are quoted according to your requests

   4.Delivery time:10-15 working days

   5.2 years warranty ,lifelong maintaining.


 After-sales service:

1. Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top

quality+reasonable price+responsible after service=successful & win .

2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;

After Maintenance period, only charge the material costs fees free of manual work fees.

3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can

response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big

project, such as stadium, exhibitions, squares and so on .


Pre-sales service:

1.Our company can arrange professionals to conduct site installation and debugging in strict accordance with the

requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make

changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of

completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with

client to find solutions.

2. Our company can train the users based on the manual.The training include system use, system maintenance

and equipment protection


3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.


4) Under normal use and storage, Our Company will be responsible for the equipments .Special service for big project, such as stadium, exhibitions, squares and so on .


Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2) Our company can train the users based on the manual.The training include system use, system maintenance and equipment protection


3) Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.
