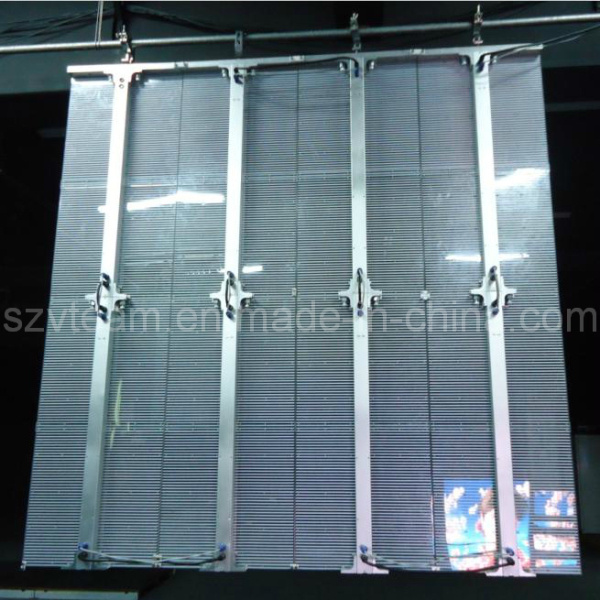

GL12/GL20 is an outdoor glass LED screen with high transparency and brightness, which is ideal for advertising and decoration on glass window, building facade etc.
Advantages:
70%transparency, backside visible;
IP65, high brightness
Individually removable & replaceable
Arc-shape with+/-10
|
Item |
|
G12 |
|
G20 |
|
Pixel Pitch |
|
12.5mm |
|
20mm |
|
Pixel Configuration |
|
RGB 3in1 SMD3535 |
|
RGB 3in1 SMD3535 |
|
Pixel Density/sqm |
|
6400 |
|
2500 |
|
Resolution |
|
48*24 |
|
32*16 |
|
Panel Size |
|
300mm×600mm×49mm |
|
320mm×640mm×49mm |
|
Viewing Distance |
|
≥12m |
|
≥20m |
|
Weight |
|
5KG |
|
Transpantency Rate |
|
≥70% |
|
Brightess |
|
4500nit |
|
Viewing Angle(H/V) |
|
140°/140° |
|
Gray Scale |
|
14bit |
|
Refesh Rate |
|
≥1200Hz |
|
Color Type |
|
68 Billion |
|
Gamma |
|
–5.0~5.0 |
|
Protection Level |
|
IP65 |
|
Application |
|
Outdoor |
|
Control System |
|
Synchronous display with control PC by DVI |
|
Signal Input |
|
Composite,S-vide, Component,VGA,DVI,HDMI,HD-SDI |
|
Power Supply |
|
DC36~75V ,FSP.Technology |
|
Working Environment |
|
Temperature-10°C~50°C,Humidity 10~90%RH |
|
Lifetime |
|
>50000hours |
|
Certififate |
|
CE |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
VTEAM Vision: Being creative concept pioneer!
