Prod Model: |
DL4N9 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
3 Watts to 30 Watts |
Certification: |
VDE |
IP Rating: |
IP44 |
Warranty: |
5 Years |
Lamp Body Material: |
Metal |
Source Number: |
Single Plug |
Lamp Installation: |
Plug Lamp |
Installation: |
Embedded |
Switch Type: |
Touch On/Off Switch |
Application: |
Home Furnishing |
Color Temperature: |
White |
Product Description
Product Description

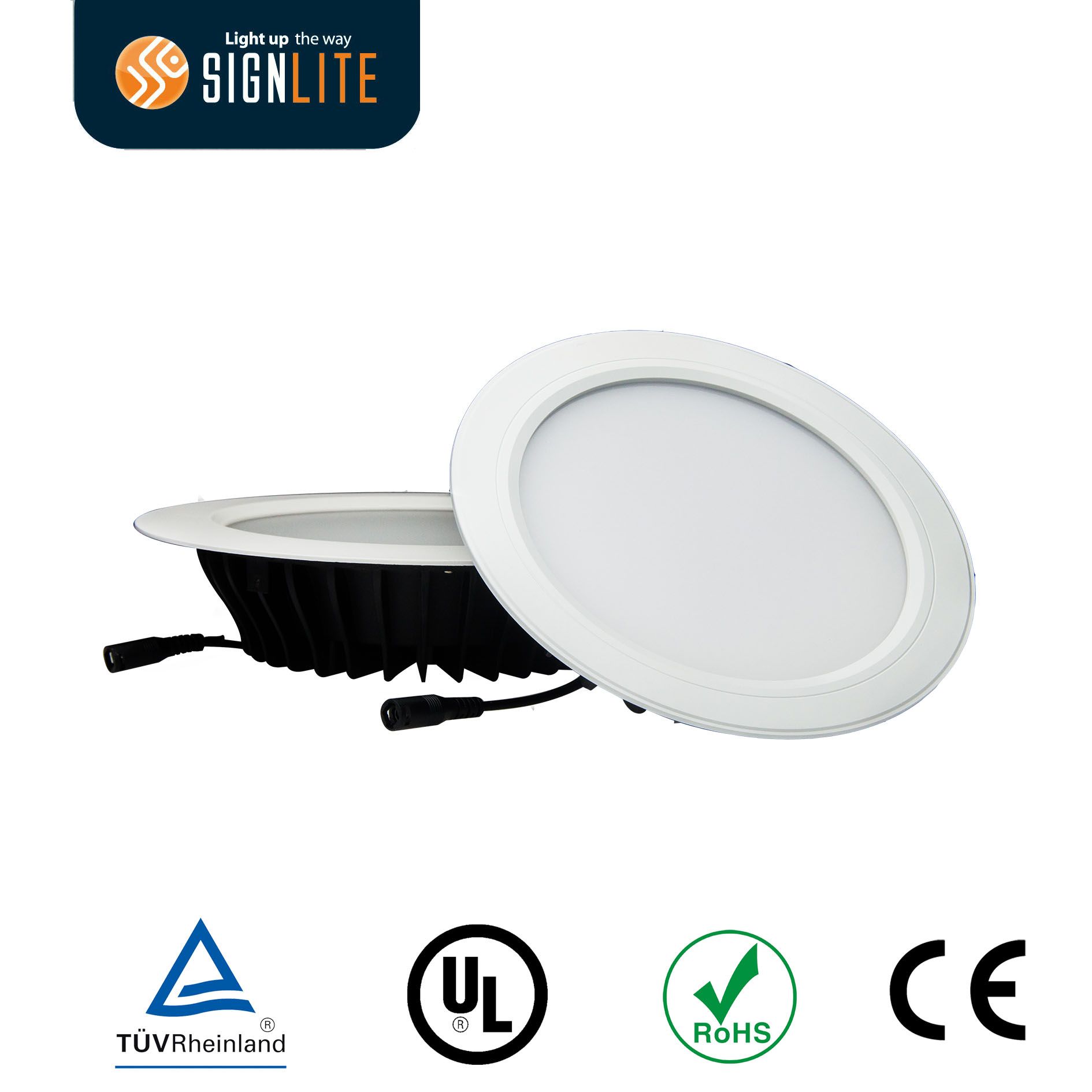

4 inch 9 watt back lighting Downlight .
4 inch back lighting Downlight,height 5.4cm,
surface diameter 14.0cm,cut hole diameter 10.36cm-4 inch, with 45 pcs SMD2835 LED,output 8300~8400 lumen,
RA 80~85,availabe color warm white 2800~3200K,
Commercial white 4000~4500K,White 6000~6500K,85 lumen/watt
DL4N9 | 4 inch back lighting Downlight,height 5.4cm, surface diameter 14.0cm,cut hole diameter 10.36cm-4 inch, with 45 pcs SMD2835 LED,output 8300~8400 lumen, RA 80~85,availabe color warm white 2800~3200K, Commercial white 4000~4500K,White 6000~6500K,85 lumen/watt | Weight: 0.32 Kg/downlight; 0.40Kg/(downlight+inner box); 50 pcs downlight+inner box per carton; 50 pcs total weight : 22.0Kg; Dimension: Box size:16.8*14.5*7 cm Carton size:75*38*36 cm |
Product series
Model | DL2.5W3 | DL3W5 | DL4W9 | DL5W12 | DL6W20 | DL8W30 |
Power | 3 | 5 | 9 | 12 | 20 | 30 |
Input | AC85-265V 50/60HZ |
PF | 0.5-0.7 | 0.9-0.98 |
LED | SMD2835 |
LED Quantity | 15 | 25 | 45 | 60 | 100 | 168 |
CRI | 80-85 |
CCT | WW2800-3200K,NW4000-4500K,White6000-6500K |
Lumen | 225 | 375 | 765 | 1020 | 1700 | 2700 |
Material | AL+PC |
Size | 2.5inch | 3inch | 4inch | 5inch | 6inch | 8inch |
