Prod Model: |
HY-Q1027 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Radiator Size: |
φ160*195mm |
Power: |
30-300W |
Color: |
Warm White/ Cool White |
Certification: |
UL |
Lamp Body Material: |
Aluminum |
Color Temperature: |
Warm White |
IP Rating: |
IP65 |
Product Description

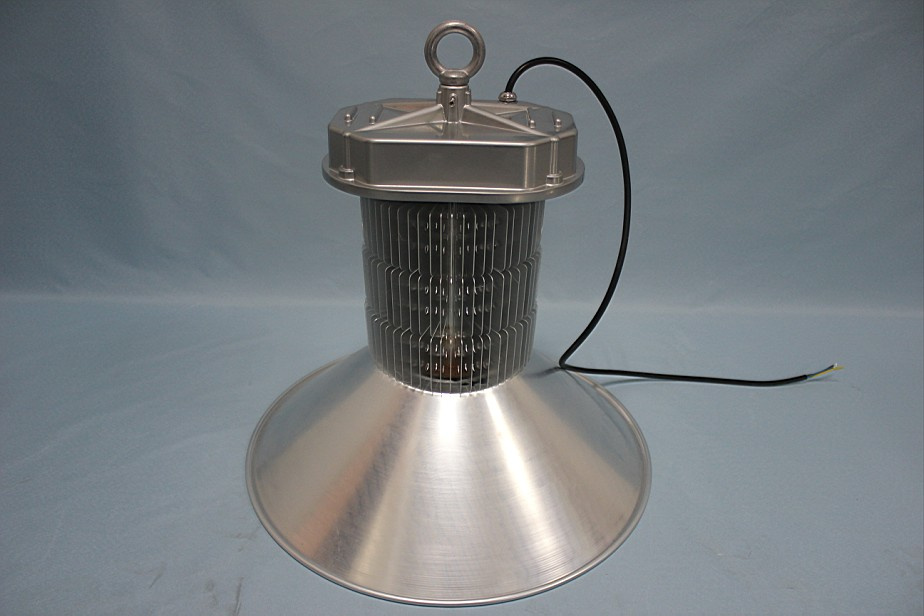

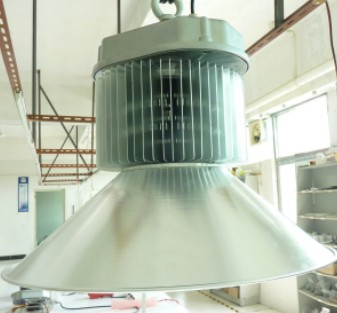

Product name: LED High Bay Light / LED industrial light NEW LED High Bay Light, LED High Bay Light /LED warehouse lamp 120W LED high bay lamp
Product Characteristics : |
Model |
ZD-Q1027- 60w |
ZD-Q1027- 80w |
ZD-Q1027-100w |
ZD-Q1027- 120w |
Beam angle |
120 Deg. |
LED Power |
60w |
80w |
100w |
120w |
Consumption |
56W |
75W |
95 W |
102 W |
Input Voltage |
AC85V-265V |
Freqmcuy Ramge |
50Hz-60Hz |
Total Harmonic Distortion |
≤ 9 % |
Power Factor |
>0.9 |
Power Efficiency |
>87 % |
LED Working Voltage |
DC30-36V |
No of LED |
1 pc |
Led Luminous Efficiency |
70-100LM/W |
Available color |
Cold white , Warm white, Red ,Green , Bule ,Yellow |
Led Initial Flux |
4400 Lm |
5900 Lm |
7050 Lm |
8800 Lm |
Equal to metal halide |
240w |
320w |
400w |
480w |
Average /Emax Ililuminance |
(Height) 8M |
80.2 /Lux |
94.3/ Lux |
97.2/ Lux |
118 /Lux |
(Height) 10M |
61.4/ Lux |
67.8/ Lux |
69.4/ Lux |
70.6 /Lux |
(Height) 12M |
50.9/Lux |
55.2/Lux |
57.6 /Lux |
58.4 /Lux |
Color Temperature |
WW |
2700K-3900K |
PW |
3900K-5500K |
CW |
6000K-7000K |
Color Rendering Index |
WW |
Ra>68 |
PW,CW |
Ra>75 |
LED Chip Working Life-span |
>50000H |
Certificate |
CE,ROHS |
Shenzhen Huaying Lighting 0ptoelectronics Co., Ltd., located(It is the predecessor of Zhongda Lighting Technology Co., Ltd. ) in Shen Zhen China, high and new technology industrial development zone is a high-tech enterprise which specializes in and integrates the R&D (research and development), manufacture, and sales of LED products. Company in Hongkong, the name' S HongKong Huaying Illumination Co., Limited. Huaying has been offered six patents by country and has successively developed both the outdoor and the indoor LED illumination products in more than one year, Such as LED Street Light, LED High Bay Light, LED down light, LED Flood Light, LED Tube, LED ceiling light etc.
Monthly producing capacity reaches 30000PCS, enables fast delivery and super-excellence quality. Working under the company philosophy: Customer-oriented, Quality-based, Learning.
If you haven' T find the product from there what are you need, and have some questions about product, please don' T hesitate contact with us. It maybe a new product imaginable that our engineer is developing.
Welcome domestic and international customers old and new coming to negotiate sincerely. Light up your life with our elegant variety of lighting options for your home and business.
