Prod Model: |
LF-PAR56-20W (COB LED-20W) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Single Color: White, Green, Blue, Red, Yellow |
LED Chip: |
Bridgelux COB LED |
Base: |
Screw Terminal/ G53 |
C/T: |
W.W.-3000~3500k, P.W.-6000~7000k, C.W.8000~12000k |
Body Material: |
Plastic + Transparent PC |
Constant Driver: |
Overcurrent Protection |
Waterprof: |
IP68 |
Type: |
PAR56 |
Emitting Color: |
White |
Waterproof: |
Waterproof |
IP Rating: |
IP68 |
Life: |
50000h |
Input Voltage: |
12V |
Diffuser: |
Polycarbonate |
LED Chips: |
Bridgelux |
Certification: |
EMC |
Power: |
20W |
Electric Current Type: |
AC/DC |
Shell Material: |
Plastic |
Product Description

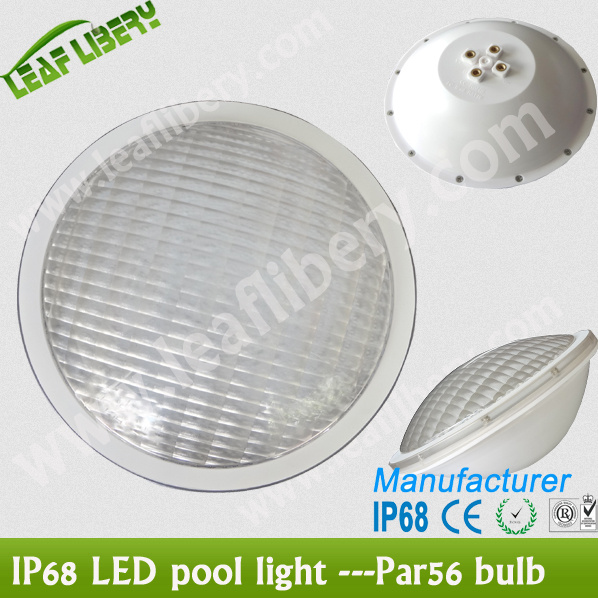

LEDPAR56 underwater lights, LED pool lights, LED underwater lights, IP68, structural waterproofing
LED Quantity: 1 pc 20W COB LED(Chip On Board LED)
Body Material: Plastic + Transparent PC cover
Size: 177mm(diameter) x 105mm(height)
IP rating: IPX8
Constant driver & overcurrent protection
C/T : w.w.-3000~3500k, p.w.-6000~7000k, c.w.8000~12000k
Voltage (V): 12V AC/DC Frequency: 50~60Hz
Wattage (W): 22±1 W
Beam angle: 120°
Base: Screw terminal/ G53
Luminous Flux (Lm): 1600±10%Lm
Packing: 20 pcs in 64.5x40.5x40.5cm carton N.G: 26 kgs
Advantages of PAR56:
1.New private mould & patent
2.good waterproof & dustproof Par56 Led swimming pool light ip68
3.good anti-corrosion performance and could be used in sea or salted-water condition
4.wide options:15w,18w, 20w, 21w, 24w, 25w, 30w,35w, SMD5050,DIP F5,18*1W,18*1W(3 in 1), 12*3W, 18*3W
Chip on Board integreted for 21W, 25W, 30W,35W for customers' options.
5.High brightness & Lumen: 25w 2000Lm and 30w 2600Lm,35w 3200Lm
6.Remote synchronization function
Features:
Sole & Patented design
Size: 178(diameter) * 105(height) mm
6063 die-casting aluminium cup which ensure lamp cup/body unbreakable & good heat difussion, and make sure of less lumens decline.
Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
IP68 with lamp housing
Constant driver to make sure LED light working stably, avoid any flashing and noisy
Voltage: DC12V, Frequency: 50/60HZ
High quality and brightness LED source
Projection distance: 10-20 meter
Color: RGB, 15 kinds of color changing method.
4 kinds of RGB control mode: built-in(automatical control), wirene control, remote and switch control
Beam angle: DIP-25°or 120°, SMD5050-120°, high power-25°or 30°or 45°or 60°
Life span 50000 hours
Overcurrent protection
Applications: Swimming pool, park, water-fall, fountain spring, gardon.
