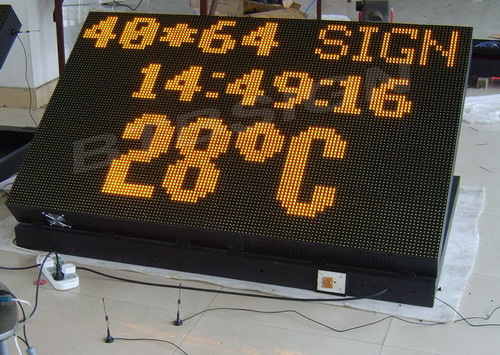

LED Traffic Display Outdoor LED Moving Message Display (BO-40*64P20Y)

Amber Color Outdoor LED moving message display

Model: BO-40*64P20Y
Color: Amber/Yellow
Pixel Pitch: 20mm
Pixel Figuration: 2Y
Pixel Density: 2500Dots/m2
Display area size (H X W): 800X1280mm
Case size: 1360*880*190mm (54.4X35.2X7.6inches)
Characters: Five lines/10characters per line/140mm height or one line/10characters/780mm height
Communication way: RS232 (Standard), RS485, Wireless, TCP/IP, GSM, GPRS etc.
Operation voltage: 100V-250VAC, 12V or 24VDC
Case material: Iron, IP65, Waterproof, Rear access service
Operate temperature / humidity: -25~60C / 0~95%RH
Blind spot rate: ≤ 0.0001
Display lift span: > 100, 000hours

Feature:
Display English or European characters as well as graphic symbols.
41 methods of displaying your message (Cyclic, Scroll up, Scroll down, flash, etc. )
9 Fonts, each with regular, bold and wide mode. User can add or modify the fonts. 67 pieces of other European characters;
Built-in timer to turn on/off during the day;
Built-in real time clock. 4 kinds of time and 5 kinds of date formats. Customized time/date format are also available;
Three methods for controlling brightness are available: Operating according to time control, automatic control and fixed value control;
Firmware and the products can be upgraded, which make users avoid some troubles.
Optional communication ways: RS232, RS485, USB, RF, TCP/IP, GSM, GPRS, etc.
You can connect many displays with RS485 or TCP/IP communication interface.

8 programmable display speeds
8 pause periods from 0 to 60 seconds
Segmented display capability to allow separate control of sections of the display
Sequencing multiple messages. Built-in scheduler for up to 30 tasks. 3 priority setting enables scheduling by week, month or year.
Duplex function allows users read data from one sign by a PC and copy it to another sign

Password protection.
Power source: 100V-250VAC, 12V or 24VDC are all available.
Low consumption
Fixing methods: Desk, wall or ceiling
