Product Overview:

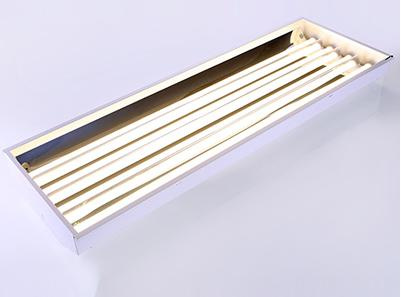

Hi-semicon LED Linear Troffer High Bays meet the challenging maintenance, safety and performance requirements of industrial environments through a superior combination of efficacy and lumen output. Featuring custom strips populated with LM-80-tested LEDs, the fixtures are designed to replace T8 and T5 fluorescent, as well as HID fixtures, in locations with 15- to 40-foot ceilings, including big box retailers, gymnasiums, manufacturing facilities and warehouses.
LED Linear Troffer High bay light Features:
High efficacy LED Boards with dual copper cladding for thermal dissipation
Optional Occupancy Sensor, Wire guard, lensed door.
Housing has rear access door for easy field access of control gear.
Suitable for continous row mounting.
Standard knock outs at ends and rear
Installations: Surface or suspended mount.
Applications:
Ideal lighting for offices, libraries, classrooms, conference rooms, retail applications, etc.
WARRANTY
5 years on the entire system (Power, LED light module and housing) with no mechanical damage or LED light module disassembly from the entire System under normal condition.
| LED Linear Troffer high bay light | HZ-DP1200-1600W |
| Input Voltage | 100-277VAC |
| Power consumption | 160w± 10% |
| Brightness | 15200-16000LM |
| Luminous Efficacy | 96lm/W |
| CCT | 3200K/4000K/5000K/6500K |
| Power factor | >0.9 |
| CRI | 85 |
| Beam Angle | 120D |
| Protection Class | IP20/IP44 |
Hi-semicon manufacture product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on Unique application such as: Flicker-free, low CCT, High CRI, Dali lighting system, Intelligent microwave sensor, daylight harvesting and so on.
