Prod Model: |
UP-PL100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Power: |
120 |
LED: |
Taiwan High Mcd 100W LED White |
LED Life Time: |
80000~100000 Hours |
Color: |
7colors |
Pan/Tilt: |
Pan=530°;Tilt=280° |
Contrl: |
DMX 512 , Sound ,Auto, Master/Slave |
Display: |
Four-Digital LED Display |
Shell Material: |
Aluminum Alloy Composites Plastic |
Light Source: |
LED |
Material: |
Aluminum Alloy |
Emitting Color: |
Changeable |
Control Channel: |
16CH |
Strobe: |
Electronic Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
RoHS |
Voltage: |
AC100~240V, 50~60Hz |
Product Description

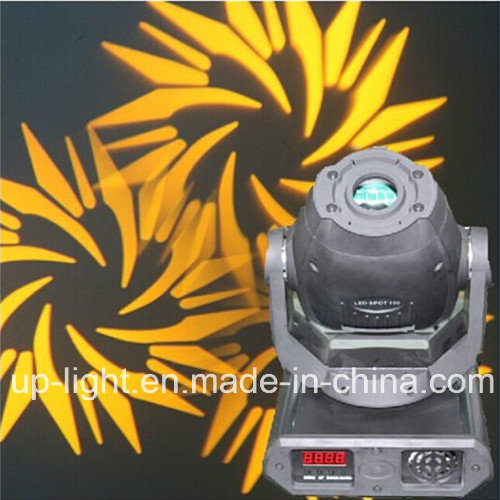

Mini 60W LED Stage Spot Moving Head Light
Power supply: 100-240V AC 50/60 Hz
Power consumption: 120W
Light source: Taiwan high MCD 100W LED WHITE
DMX-control-channels: 16
DMX-512-connection: 3-pin XLR
Dimensions:400*270*280mm
Net Weight:10kgs
Maximum ambient temperature ta: 45° C
Function of the control channels
Channel | Function |
Channel 1 | dimmer |
Channel 2 | strobe |
Channel 3 | Color-wheel |
Channel 4 | semi-wheel |
Channel 5 | Horizontal movement (Pan) |
Channel 6 | Vertical movement (Tilt) |
Channel 7 | prism |
Channel 8 | prism rotations |
Channel 9 | rotating gobo-wheel |
Channel 10 | Gobo rotation |
Channel 11 | Gobo running forward and backword |
Channel 12 | focus |
Channel 13 | Pan fine 16 bit |
Channel 14 | Tilt fine 16 bit |
Channel 15 | Speed of PAN / TILT movement |
Channel 16 | reset |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
