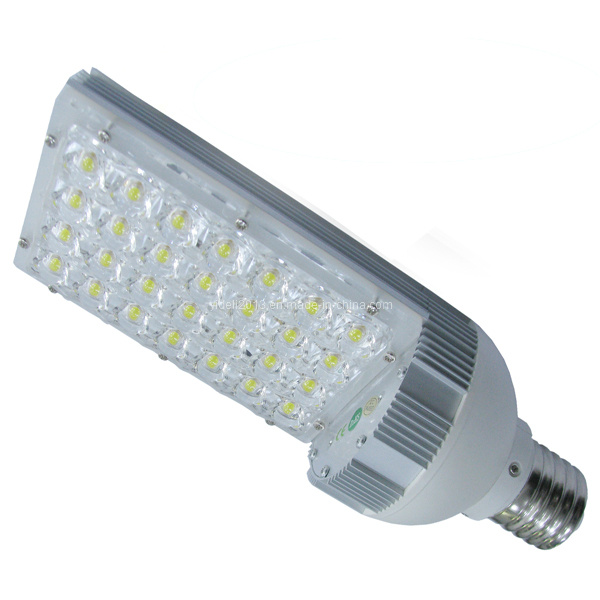

New 2013 year 220V E27 E40 LED Street outdoor pl bulb light 32W
1. Advantage:
1). High power Epistar COB LED chip, high luminance, low energy cost, long life span, environmentally friendly
2). Enduring high temperature, avoiding short circuit, great reliability
3). High brightness, brilliant heat emission, nice color
4). Harmless soft lighting
5). No ultraviolet or IR radiation
6). Integrated design with nice outlook
7). Easy to be installed
2. Fetures:
1. The light source adopts the single high power LED, imported high brightness semiconductor chips.
2. The radiator in 6063 aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the Light a long life span; A distinct appearance according to the modern streamlined design, Replace of Conventional HPS.
3. The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can Make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of light Uniformity and utilization, showing the LED advantage of energy saving.
4. Products using low loss, high precision constant current circuit, increased power efficiency, ensure load Stability. Wide range of input voltage: AC85-264V.
5. No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise; To increased The products safety, the circuits with over voltage, over current, short-circuit protection.
6. No electrical wave, conforming to CE.
7. Environment friendly and no air pollution. We exert the design of using cold light source. It's no heat Radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other Contamination. It is really environment friendly with RoHS certificate.
8. Shell surface temperature is below 65° (ambient temperature-25° -55° To work long hours under Temperatures) and far less than traditional halogen lamps in the same work under the temperature of the Surface temperature, when you use a more secure.
Application of LED street light 36W:
1. City Streets, Municipal Roadways, Bridges
2. Housing Projects, Public Parks, Parking Lots, Yards and Gardens
| No. | Item | Description |
| 1 | Input Voltage | AC100-240V 47-63Hz,AC85-265V,277V,DC12-24V |
| 2 | LED | 32pcs high power Epistar led |
| 3 | Driver(Power supply) | Meanwell driver |
| 4 | Power | 28W/30W/36W/40W/42W/45W/54W/56W/72W/80W/84W/98W/100W/112W/126W/120W/140W |
| 5 | LED Efficiency | 80-90LM/W,90-100lm/w,110lm/w,130lm/w |
| 6 | Initial Flux | >3400Lm (Cool White) |
| >3240Lm (Natural White) |
| >3120Lm (warm white) |
| 7 | Power factor | >0.95 |
| 8 | Color | Warm white/Natural white/Cool white/White/Red/Green/Blue/Yellow/Black/Purple/Pink/RGB |
| 9 | Color Temperature | 2700-3300K (Warm White) |
| 4000-5000K (Natural White) |
| 5300-7000K (Cool White) |
| 10 | Center Illuminance | 1.5M:332Lux |
| 3.0M:82 Lux |
| 6.0M:17 Lux |
| 11 | Beam Angle | 120°/60 °/100°/50 °/80 ° |
| 12 | Life Time | >50,000 Hours |
| 13 | Operating Temperature | -40°C to +55°C |
| 14 | Storage Temperature | -25°C to +65°C |
| 15 | Connect Wire | Brown L |
| Blue N |
| Yellow/Green G |
| 16 | Certifications | CE, RoHS,EMC,LVD,IES,ISO9001:2008 |
| 17 | Weight | 1.12KG |
| 18 | Size | D90mm*H260mm |
| 19 | IP Code | IP54 |
| 20 | Base | E40/E27 |
