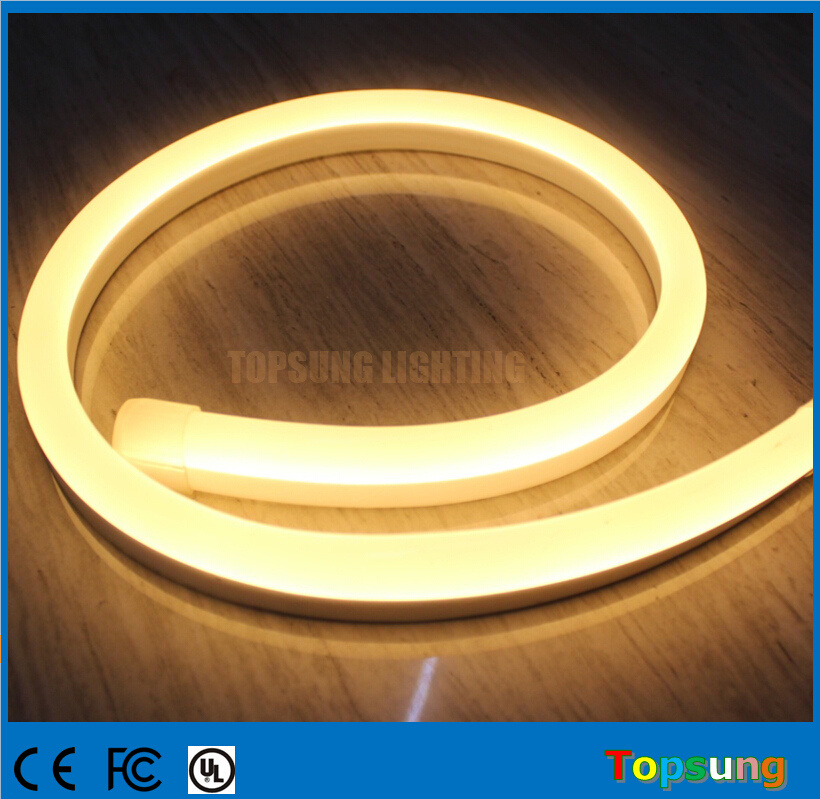

new professional light top view led neon flex strip
Feature of LED neon Flex:
Good Flexibility
Long life and Durability
Energy Saving
Safety
Low voltage, Low energy used and cutting
High and Even Brightness
Transportable and Easy to Install
Specification of led neon light:
LED Neon Flex
Material: colored PVC Jacket
Dimension: 14*26mm
Water-proof IP67
LED QTY:108leds/M
Lumen/Meter: 750-850lm/M (white,warm white)
Power: 10m/M
Input voltage: 220-240V
Features of best led neon flex price :
Consistent and stringent wavelength control standards +/_3nm
Ultra-bright & Low Light attenuation LEDs
Milky white diffuser
White PVC base edge to increase luminosity
100% unbreakable
100% waterproof
Low heat
Low maintenance coat
1/10 the energy consumption of glass neon
Fully enclosed electronics: no exposed glass tubing as with neon
Environmental protection
Work temperature:-20°C~60°C
Specification of Top View LED Neon Flex
Topsung Professional Top View LED Neon Flex |
Volt. | 220V/110V |
Colors | red, yellow, blue, green, white, warm white, pink |
Jacket | Milky white jacketed / Color jacketed |
Light source | 2835 SMD LED |
LED QTY | 108 LED / M |
Lumen | >600LM / M |
Power | 10 W/M |
Cutting length | 1M/0.5M |
Dimension | 16 mm x 28 mm |
Beam angle | 180 ° |
Load length | 50M |
Material | PVC material, ultraviolet-proof |
Work condition | Indoor or outdoor use ; - 20°~ +60°C; |
IP grade | Waterproof IP67 |
Package | 50m /carton ; carton size: 34*34*34cm |
Warranty | 2 years |
Lifetime | 50,000 hours |
Upward View Neon | VS | Side View Neon |
|
| SMD LEDs @ Sideward View |
SMD LEDs @ Upward View => Brighter |
|
|
SMD LEDs (on Flexible PCB ) placed at the base , light output is Upward, thus enhancing the actual and perceived brightness. | Brightness | SMD LEDs (on Flexible PCB ) placed on one side, the light output is being weakened during light transmission. |
Waterproof IP68 | IP grade | Waterproof IP65 |
SMD LEDs (on Flexible PCB ) placed at the base, so it allows led neon flex could be bended from both directions very flexibly, not easy to make connection joints damaged. | Flexibility | SMD LEDs (on Flexible PCB ) placed on one side, so it doesn't allow LED neon flex to be bended on the side where LEDs are placed, thus more likely to make connection joints broken. |
With special design circuit connection, Max length in one continous run is about 20mwithout volt drop out | Load length | Max length is about 10m in one continous run, otherwise it will cause voltage drop out |
One SMD LED's failure won't influence the whole unit's normal working without defective dot, more stable | Stability | One SMD LED's failure will cause the whole unit's malfunction. |
As a member of LECHANCE GROUP, Topsung Industrial Co., Limited is a professional manufacturer and exporter of lighting and IT products in Shenzhen for 10 years.
Topsung Industrial Co., Ltd has two factories (Partner or Shareholder):
One factory (Called "Chatway") with 1000 square meter production line, manufactures and distribute walkie-talkies and two way radios for 10 years since 2005.
Another factory (Topsung Lighting) with 3000 square meter production line, has 8 years experience on distributing & producing LED lndoor lights and decorative lights since 2008
Main & Hotsale products:
1) Decoration LED lights: LED neon Flex, LED rope Light, LED christmas lights
2) Indoor LED Lights: LED Linear Lights, LED Panel lights, LED tube lights
Our advantage: Trustable quality, lower price, fast delivery, strong technical support, good RMA policy.
We believe that: Innovation, high-quality, low price and great efficiency will bring both parties with long-term mutual benefits.
OEM and ODM services are welcomed.
