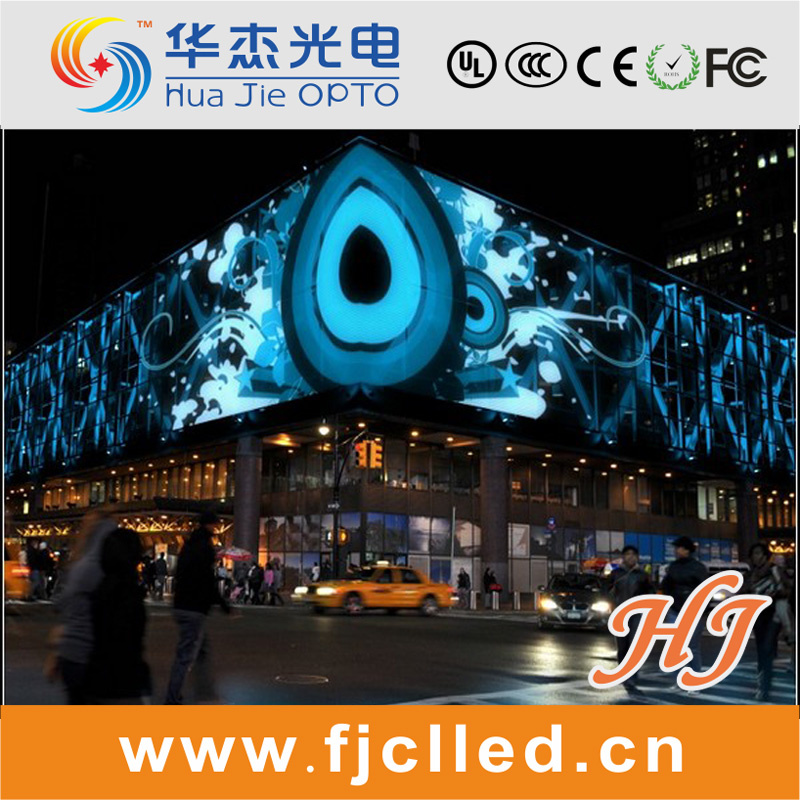

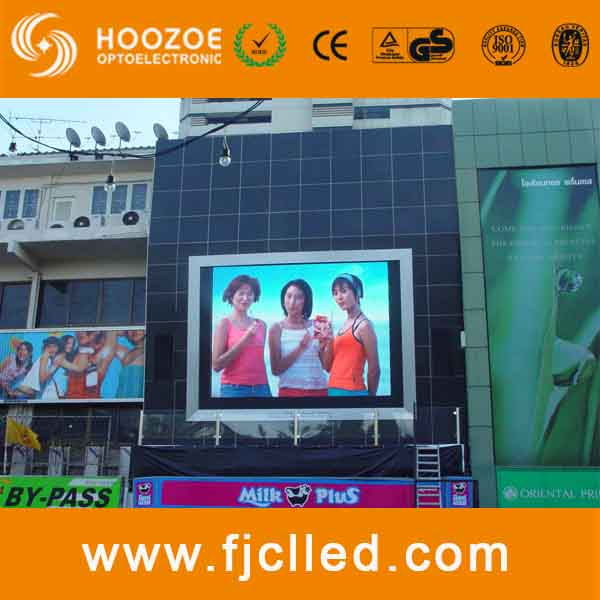

Outdoor Full Color LED Display for Advertising
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
5/Square Meter |
Pay Type: |
T/T,Western Union |
Waterproof Outdoor Full Color LED Display for Advertising/P10mm
1. Certification: ISO9001: 2000, CCC, CE, FCC, RoHS, EMC
2. Energy saving.
3. Colorful, fresh & beautiful images.
4. Competitive price.
5. Superior Uniformity
6. Extra-high Brightness
LED Display Sales Service--24 HOURS ON CALL
1. Service before sales
On-site inspect
Professional design
Solution confirmation
2. Training before operation
Software use
Safe operation
Equipments maintenance
3. Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
4. After sale service
Quick response
Prompt question resolving
Service tracing
FUJIAN HUAJIE OPTOELECTRONIC CO., LTD
Fujian Huajie Optoelectronics Co., Ltd, located in Quanzhou , Fujian Province is one of the leading professional high-tech enterprises which specializes in LED display with registered capital 30 million RMB. After ten years' efforts, we have become one of the most professional global LED product suppliers which can provide the best LED solutions for customers, with covering an area of over 60000 square meters and more than 1300 staffs. Also, we have built our manufacturing base Channel Cailiang Optoelectronic Co., Ltd in Yunxiao , Zhangzhou ,the Chinese Optoelectronics Realm. At present, we have one skilled R&D team and a production line of highest automatic degree; our production capacity can be up to 50,000 pieces or 2,500 square meters per day. Our LED products have achieved ISO9001-2008, 3C, CE Certificate, etc.
Now, at home we have built a thorough marketing and sales service system; meanwhile, our products have sold to more than 50 countries and areas, such as Russia, Turkey, USA, Canada, etc.
Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.
Our LED products have the below advantages:
1. Tube chip: the chip brand is Epistar; the size is over 9 mils; compared with other manufacturers, the lifetime is longer.
2. Mask: the unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.
3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.
4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.
5. Famous IC brand is adopted, whose quality is guaranteed.
Technical Parameter |
Pixel |
Pixel Pitch(mm) |
10mm |
Pixel Configuration |
1R1G1B |
LED Package |
Oval, 346 |
Module & Cabinet |
Module Pixel (dots) |
16× 16(W*H) |
Module Size (mm) |
160× 160(W*H) |
Standard Cabinet Size (mm) |
960× 800× 185(W*H*D) |
Cabinet Weight (Kg) |
46Kg/pcs |
Cabinet Layout(pcs) |
6pcs*5pcs(W*H) |
Cabinet resolution (dots) |
96× 80=7, 680 |
Slot /Level Between Neighboring Modules(mm) |
< 1mm |
Ingression Protection Grade |
Front Side: IP65Resist spraying of water gun directly, Back Side: IP54Resist Rain |
Electric Power |
Input Voltage(AC) |
220V± 10% or 110V ± 10% |
Current Leakage to Ground (mA) |
< 3mA |
Average Power Consumption (W/sqm) |
550W/sqm |
Max. Power Consumption (W/sqm) |
1400W/sqm |
Control Mode |
Control Mode |
Synchronization |
Control System |
PCTV Card, DVI Vedio Card, Master Card, Fiber Transmission |
Video Acceptable |
TV VCD DVD PC |
Vedio Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and etc |
Transmission Distance |
CAT-5E≤ 130m/Multi-mode Optical Fiber≤ 500m / Single Mode Optical Fiber≤ 10km |
Main Technical Parameter |
Scan Mode |
1/4 |
LED DriveMode |
Constant Current |
White Blance |
X= 0.33 Y= 0.33 5600° K(Adjustable up to 9000° K) |
Brightness (cd/sqm) |
> 5, 500cd/sqm |
Pixel Density |
10000 dots/sqm |
Viewing Distance(m) |
10-350m |
Viewing Angle(degree) |
Hor. 160° Ver. 160° |
Brightness Calibration |
256 grade |
Gray Calibration |
256---4096 grade |
Images Calibration |
Contrast/Tonality/Single Module Lightness |
Refresh Rate |
300---2440 frame/s, adjustable |
Frame-changing Frequency |
More than 60Hz |
Display color |
16777216 |
Continuous Working Hours |
> 72 Hours |
Using Life |
100, 000 Hours |
MTBF |
> 10, 000 Hours |
Scatter OOC Point |
< 0.01% |
Continuous OOC Point |
None |
Color Temperature(k) |
3200-9300k, adjustable |
TemperatureRange |
Storage: -40deg. to +85deg.; Working: -20deg. to +60deg |
Working Humidity |
Outdoor 10%---90% |
Software |
LinsnStudio |
Prod Model: |
CL-P10-RGB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
160mm X 160mm |
Module Weight: |
0.4kg |
Pixel Configuration: |
DIP346 |
Brightness: |
≥6500 |
Best View Distance: |
10--30m |
Viewing Angles: |
H120/V70 |
Working Temperature: |
-20--+60centigrade |
Warranty: |
3 Years |
Pantallas LED: |
Pantallas Gigantes LED |
Cartel LED: |
Pisobaile LED |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Pixel Pitch: |
10mm |
Display Function: |
Video Display |
Scanning Mode: |
1/4 Scan |
Certification: |
CCC |
Pixel Density: |
10000 dot / m² |
Average Power Consumption: |
350W / m² |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
