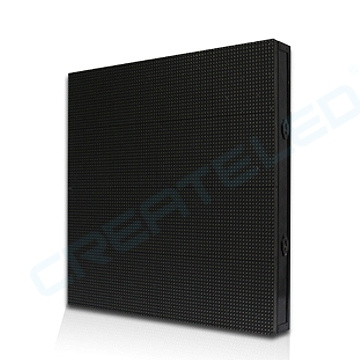

Best choice for outdoor rental and mobile display.
Key Benefits
1. Innovative waterproof surface mounted technology allows intense high resolution images.
2. Ultra-High brightness of more than 5,000 nits, Sunlight readable.
3. IP Rating: IP65.
4. High resolution display: 7.8mm pixel pitch, 64 x 64 dots.
5. Extremely close viewing distances and wider viewing angles of more than 160 degree.
6. Light output of more than 5,000 nits, offering bright display.
7. Silent operation, little heat generated (no fans).
8. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
9. Lightweight and seamless precision extruded aluminum section structure.
10. Real white, brilliant color, breathtaking grayscale
Module size: 250mm x 250mm
Panel size: 500mm x 500mm x 82mm
Panel weight: 7kg
Weight per m2: 28kg
Support frame in aluminum
Power supply: AC 220-240 V, 50/60 Hz
Power consumption: max 200 W/panel
MTBF ≥ 1, 000 H
Ambience working temperature: -20~55C
Ambience humidity: 85% at 25C, 65% at 40C
LED type: Blackbody SMD 3 in 1
Resolution: 64 x 64 pixel/panel
Pixel pitch: 7.8mm
LED population: 16, 384 LED/sqm
Brightness: ≥ 5, 000 Nits
Drive method: 1/8 scan method
Lifetime(50% brightness): 100, 000 h
Colors: 281 trillion
Gray scale: 16 bit
Refresh rate: 600~2, 000 Hz
Viewing angle: H: ≥ 160° , V: ≥ 100°
Dead Pixel Ratio: < 0.002
Sender Box input: USB connector
Sender Box output: RJ45 connector
Connection between PC and Sender Box: USB cable
Supported video input: DVI/HDMI/SDI
Software functions: display configuration, intensity adjustment, color calibration, content management, and system settings. |
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
