Prod Model: |
GLOR500-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
500*500*75mm: |
19.7''*19.7''*3.0'' |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
300W / m² |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
RoHS |
Pixel Pitch: |
6.25mm |
Pixel Density: |
25600 |
Scanning Mode: |
1/10 |
Product Description

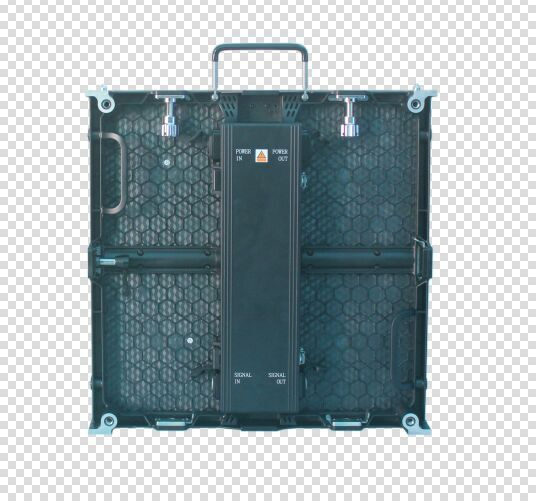

GLOR500 Series offer excellent contrast and image quality, it is slim and lightweight.
Features:
1. Dia-Cast Alunimun structrue
2. Available pixel pitch: GLOR500-5/GLOR500-6
3. Panel dimension: 500mm*500mm*75mm
4. Panel weight: 8.5KG
Application:
TV station, Stage, Wedding, Airport, Hotel, Railway Station, Shopping Mall, Bar, Advertising, Outdoor event
Model Number | GLOR500-6 |
Pixel Pitch | 6.25mm |
Pixel Density/ | 25,600dots |
LED Configuration | 1R1G1B SMD3535 |
Module Size | 250mm×250 mm |
Module Resolution | 40dots×40dots |
Panel Dimension (W×H×D) | 500×500×75mm |
Panel Resolution | 80dots×80dots |
Minimum Viewing Distance | 6m |
Panel Weight | 8.5KG |
Refresh Rate | ≥ 2000 Hz |
Brightness | ≥5000cd/ m2 |
Power Consumption | Avg:200W/Panel Max:400 W/Panel |
Viewing Angle(H/V) | 140°/140° |
Lifespan | 100,000 hours at 50% brightness |
Operating Temperature | -20ºC~ +45ºC |
IP Rating | IP65 |
Certifications | CE, RoHS |
Control System | Nova / Linsn |
We specialize in this field for several years with good quality and pretty competitive price.
Our products cover indoor, outdoor, curtain and curved LED display which can be applied in many situations for different purposes.
