Prod Model: |
GD02 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Body Size: |
Height1500mm*Width1000mm |
Picture Size: |
Height1300*Width800mm |
Pedestal Height: |
400mm (Wheels with Brake) |
Material: |
Aluminum |
Type: |
Scrolling Light Box |
Usage: |
Advertising |
Shape: |
Square |
Certification: |
CE |
Product Description

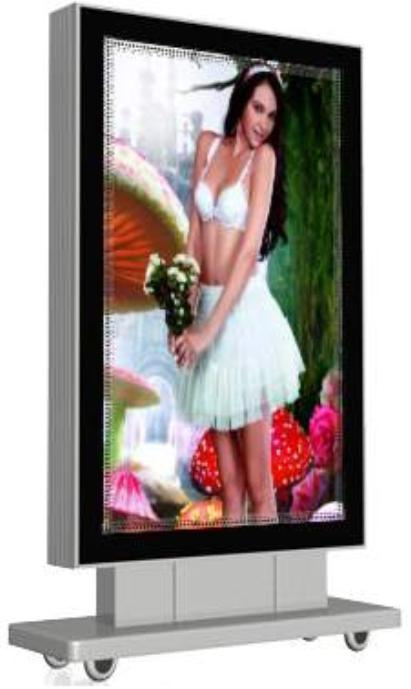

Outdoor Waterproof Scrolling LED Light Box
Multi-Image Double Side Scrolling LED Light Box
Specification:
1)Material of frame: Aluminum alloy, stainless steel, steel
2)Front cover: Polycarbonate or tempering glasses
3)Light source: T8 flourescent lamp or LED
4)Application: indoor or outdoor
5)Side: Single or double side
6)Benefit: Wall-mount,self-standing
7)Scroll posters: 4-16 pcs
8)Scroll speed: 0.15-0.24m/s
9)Scroll diameter: 50mm,60mm,100mm,150mm
10)Scroll system: SPDE 51A, SPDE76A, SPDE120A
11)Input and output: AC 110V or 220V, DC 36 V
12)Motor power: 24V DC-40W
13)Warranty : 2 years
14)Certification: CE, Rohs, UL
Max size: 6000MM x 2300MM
Min size: 900MM x 600MM
Custom made: Customed size available
Standard size as follows:
Model Type | Over size WxH(MM) | Poster size WxH(MM) | Visual size WxH(MM) | Scrolling System | Power |
GL-0812 | 800x1200 | 700x1100 | 600x1000 | SPDE-51A | 112 W |
GL-1215 | 1200x1500 | 1100x1400 | 1000x1300 | SPDE-51A | 220W |
GL-1218 | 1200x1800 | 1100x1700 | 1000x1600 | SPDE-76A | 265W |
GL-2030 | 4000x2000 | 3900x1900 | 3800x1800 | SPDE-120A | 700W |
