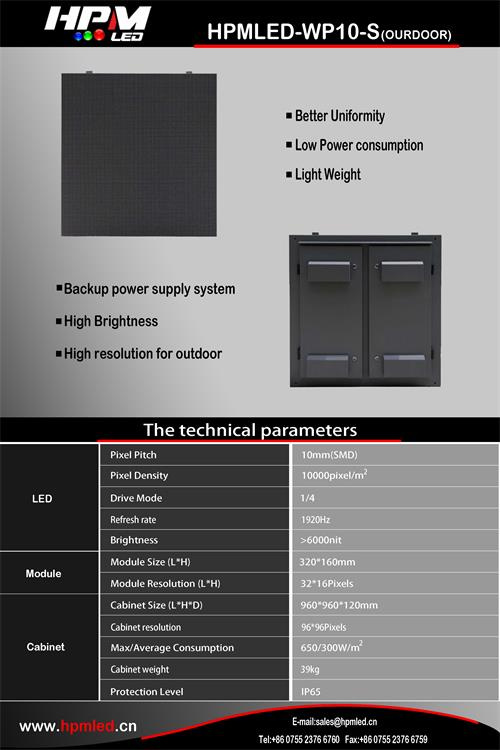

Full color outdoor P10 led display Professional manufacturer
Quick Details Full color outdoor P10
Place of Origin: Guangdong, China (Mainland)
Brand Name: HPM
Model Number: HPM-WP10-S
Usage: Outdoor
Tube Chip Color: Full Color
Display Function: Video
Pixels: 10mm
Packaging & Delivery
Packaging Details: wooden case packing: 1200*550*1300mm,two 1024*1024mm led display cabinets per carton.
Delivery Detail: 10-20days
Specifications
Type: Outdoor LED Display;
Model: HPM-WP10-S ;
Pixel diameter: 16mm ;
Pixel density: 3906dots/sqm
Certification: CE
Outdoor full color LED Display Specifications:
1.Uniform color, high contrast, good consistency, the screen is gorgeous natural
2.Low energy consumption, low heat, low noise, energy saving and environmental protection
3.Ultra wide angle of view, the visual angle is wide, the audience is large
4.Anti UV, anti distortion module package, flatness is good, and protect the best display effect of the screen body
5.Professional mask design, waterproof and dust, protection level of IP65
6.Signal, power supply stability, system stability, the use of safe and reliable
7.Box sizec960*960*120, single box
# |
Speci. |
HPM-WP10-S |
LED |
Pixel Pitch |
10mm |
Viewing Distance |
10-250M |
LED Composition |
1R1G1B |
Pixel Density |
10000pixel/m² |
Brightness |
>6500 nit |
Viewing Angle |
H: 120° / V:60° |
Life Time |
100,000 h |
Working Environment |
Working Temperature |
-20~60o |
Working Humidity |
10%~90% |
Input Voltage |
AC90-240V |
Max/Average Consumption |
680/340 W/m² |
Visual Effect |
Drive Mode |
1/4 |
Driver IC |
SUM20161/MBI5024 |
Refresh Rate |
1900 Hz |
Gray Scale |
16 bit |
Color Temperature |
6500K |
Cabinet |
Cabinet Size (L*H*D) |
960*960*120mm |
Cabinet Resolution (L*H) |
96*96Pixels |
Cabinet Material |
Steel/Aluminum Cabinet |
Cabinet Weight |
45Kg |
Protection Level |
IP65 |
Module |
Module Size (L*H) |
320*160 mm |
Module Resolution (L*H) |
32*16pixels. |
F&Q
What exactly is an LED screen?
An LED Screen is like a giant television, but with one fundamental difference: instead of the picture being beamed from a cathode ray tube, each pixel is made up of a cluster of tiny LEDs (like the one's you find in modern bike lights, but brighter).
Each cluster on an LED screen has a red, green and blue LED, which light up accordingly to create the correct colour. If you look very closely at your television set then you can see individual pixels. If you look very closely at an LED screen, all you see is lots of very bright little lights, because the pixels are much bigger, but when you get further away the picture becomes clearer.
So it's not an LCD screen then?
No, LCD screens are much smaller and use a different technology. Unlike the clusters of LEDs that make up an LED screen, a picture on a LCD screen is produced by electrically 'relaxing' twisted liquid crystal molecules and passing light through them from a backlight. A completely relaxed molecule will become almost completely opaque, while a fully twisted one will allow the full luminosity of the backlight through, and this method creates the picture which is shown on the screen.
However, if you would like LCD screens or plasma screens, we also offer them for both rental and sale. Many of our customers require LED screens for their main event and plasma screens to show it in corporate areas.
HPMLED (HPMLED. CN)was founded in 1993, the company is located in the United States, China LED HPM was founded in 2015 In the year, dedicated to the manufacture and marketing of the LED RGB screen and all electronic, numerical and matrix displays, full Each and every one of the specific needs of each and every customer for many years to provide art products with the technological progress, guiding customers High productivity and profitability of household security investment.
Our mission:
Direct cooperation with our customers to develop their projects to provide the most suitable for their needs to achieve Tangible and lasting improvements in their business, products, provide the market more than a product of light emitting diode Tube. From the beginning, we as consultants, through the provision of suitable products for each application, through An increase in value, and their acquisition of a rigid mindset is always satisfied with the consultant.
Company value:
Fulfill commitments and challenges, and give them all the knowledge and skills of our organization every day.
HPM LED major activities include: LED display manufacturers, to provide customized LED display solutions to
And the development of new LED display products and provide after-sales service time.
