P10 outdoor advertising led display screen,flexible led display, Standardized cabinet, Versatile Usage:This outdoor full color LED display panel is available usage for 10mm, 16mm, or 20mm, and adapts to numerous controllers ZDEC, dB-Star, Linsn and novastar. The only differences for different pixel pitch are just changing the PCB board and mask.
The highly versatile usage creates significant benefits for purchasing, inventory and shorting producing time which is just up to two weeks.
2
, Reliability and stabilityOutdoor full color LED display panel is made in square shape with different proportion options which are 16: 9 and 4: 3. Deployment of the combination of LED boards and driving boards, the related auxiliary circuit can be integrated to reduce components and connector, in order to enhance the reliability and stability. Key advantages in skipping to components soldeing between LED boards and driving boards, errors in process of soldering will be completely avoided.
3, Green guarantee: To achieve energy-saving, an extremely stringent selection of two different power supply is for different components. The power supply with 5V voltage is getting through the blue lamps and chips. Another one with 3.3 voltage is supplying for red lamps.
4, LightweighterUsually the general cabinet is 55 kg, but the specialized standard cabinet can be just only 45kg with 120mm width, which translates into significant saving in terms of transportation, serviceability. Seamless design can deliver extraordinary image and video to audiences. The accuracy of this cabinet sets new benchmark standard in the marketplace. Compare with general cabinets with diagonals of 2mm, the diagonals of the standard cabinet are achieved to be less than 0.2mm.
5, Advanced cable arrangement: Less modules in one cabinet, less cable needed to be arranged, so that it enablesmore efficient and clean cable arrangement.
6, Consistent uniformity over time
Enhanced epoxy resin can slow the aging process, and offer a greater degree of reliability in humid operating conditions. World-class calibration technology can do colour and brightness calibration simultaneously before display delivery, which ensures display stability and uniformity over time.
7, Perfect for outdoor usage

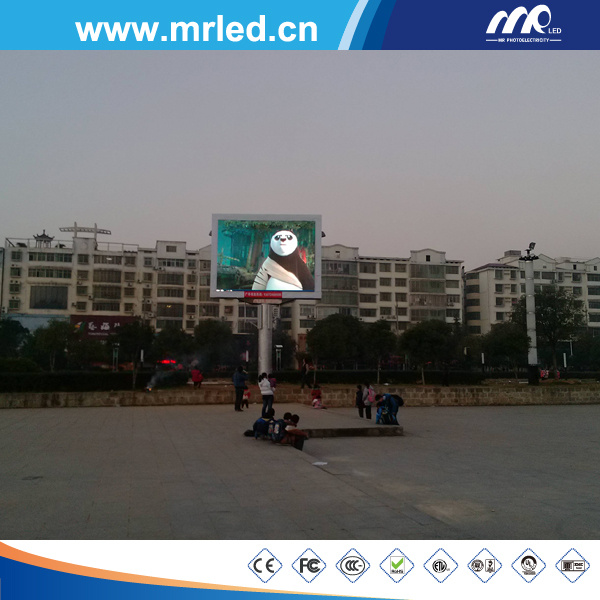

960x960 cabinet is ideally suited for countless applications- from entertainment venues to sports stadiums and shopping mall. Its high resolution and ultra high brightness output ensures to deliver superb contrast levels, even in the brightest of sunlight. With High refresh rate, the image is much more stable and guarantee no loss of visual information when taking pictures by professional camera.
8 Cost -effective
Cost -effective in daily operating enables the xxxx become the most popular LED series in the marketplace. Daily operation is simple to upgrade and replace for modules with less cost. After years of usage, the new modules can be replaced or upgraded without changing the old cabinet and structure.
9 Robust compact resistance
The creativeness of the surface of the standardized cabinet is designed to be folding, so as to easily and firmly install modules. Leveraging the folding design, the cabinet is extremely long-time durable, robust compact resistant and perfect anti-bending strength. Moreover, the intensity can be enhanced to 50 times than general cabinet.
10, Advanced heat dissipation design
Specially designed for oblique ventilation in the back door can be more efficient heating dissipation. More space saving of the back door is beneficial for limited installation location. Key efficiencies in air inlets and outlets located at oblique ventilation save more power energy
| Item | 10mm outdoor LED Display(960*960mm) |
| Pixel Pitch: | 10mm | 10mm | 10mm |
Driving Method :
|
1/2
|
1/4
|
1/2
|
| LED type : | SMD3535 | DIP346 | DIP5454 |
| Brightness: | ≥5500cd/m² |
| Pixel density | 10000pix/m² |
| Viewing angle: | 140°H and 120°v | 120°H and 60°v | 140°H and 120°v |
Module Size(W*H)
| 160*160mm |
Cabinet Size(W*H)
| 960*960mm |
| Cabinet weight: | 42kg |
| Cabinet Material: | Aluminum |
| Avarage Power Consumption: | 525 W/m² | 260 W/m² | 525 W/m² |
| Max Consumption : | 1250 W/m² | 750 W/m² | 1250 W/m² |
| Refresh rate: | >1200HZ |
| Color Depth: | 14bit | 14bit | 14bit |
| voltage : | 200-240V | 200-240V | 200-240V |
| IP Rrating (Front/Rear): | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Operating temperature : | -20-60 degree |
| Storage temperature: | -40-70 degree |
| Operation humidity: | 10-90% |
| Storage humidity: | 10-90% |
| Life span (hrs) | ≥55000 |
| Control system | Linsn/Nova |
| Compliant standard: | CE,FCC,RoHS,CCC |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.

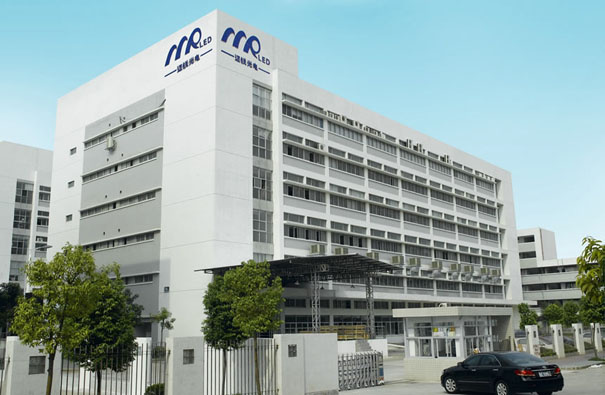

Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

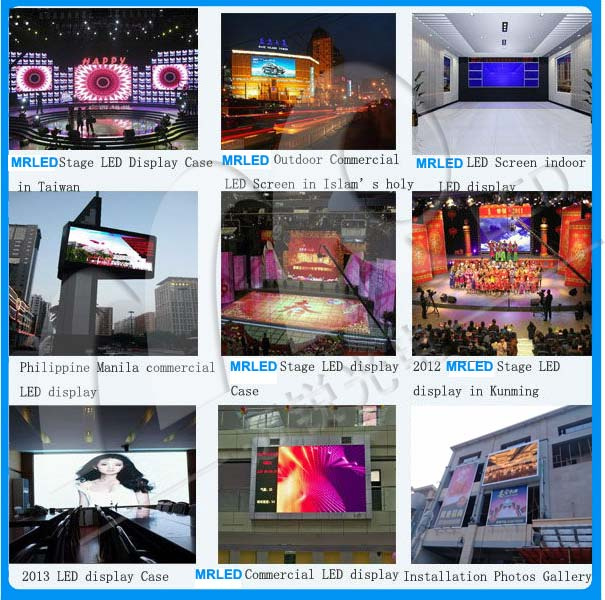

In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
