Product Description

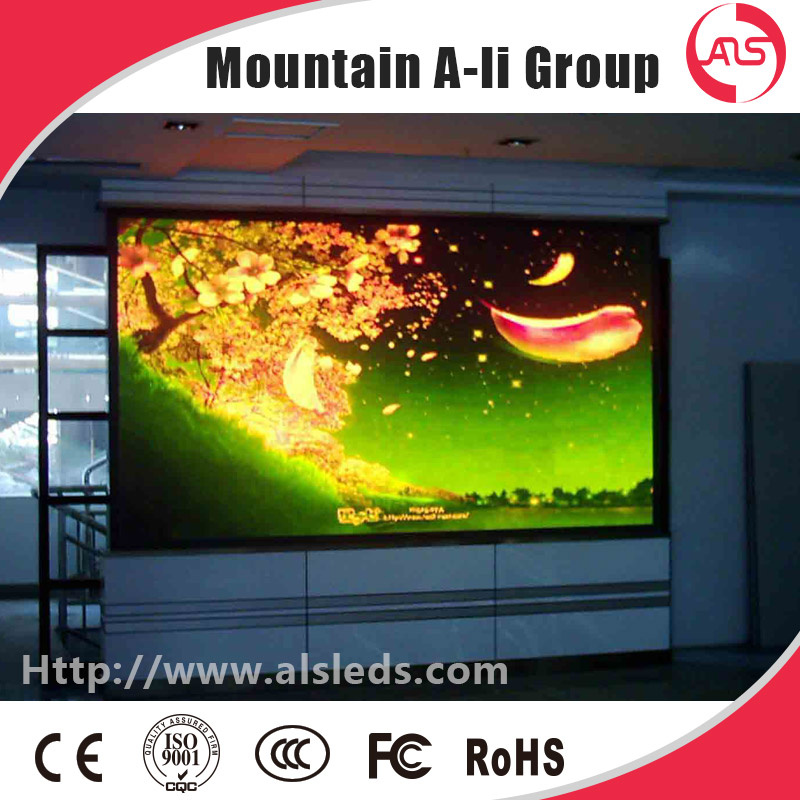

P3Indoor Video Meeting full color LED Display sign
Main feature:
Price lower than most factory
Ultra slim and light cabinet
Low heat
Easy fast lock and installation
Seemless assemble
Utra-high refresh rate, support the camera recorder, to ensure a clear picture quality
Suit to all indoor place: TV broadcasting room, meeting room, stage, shop, bar, airport etc.
Parameter
| The specifications of module |
|
| Item | Parameter |
| Product model | P3-16S |
| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel density | 111111dots/m2 |
| Pixel configuration | smd 3in1 |
| Module resolution | 64dots(W)*32dots(H) |
| Maximum power consumption | 18W |
| Module thickness | 14.75mm |
| Module weight | 0.16kgs |
| Driving method | Constant current driving |
| Scan mode | 1/16 scan |
| Interface type | HUB75-A |
| Brightness | ≥ 1500cd/m2 |
| The specifications of cabinet |
|
| Cabinet size | 576mm*576mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A *3pcs |
| Cabinet resolution | 192*192dots |
| Optimal viewing distance | 3m ~ 20m |
| Optimal viewing angle | 160°(W) 120°(H) |
| System operating humility | 10%-95% |
| The specifications of power supply |
|
| Operating voltage | AC220V±10% |
| Average power consumption | 180W/ m2 |
| Maximum power consumption | ≤ 360W/ m2 |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters |
|
| Driving device | Constant current driving |
| Refresh rate | ≥400Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
