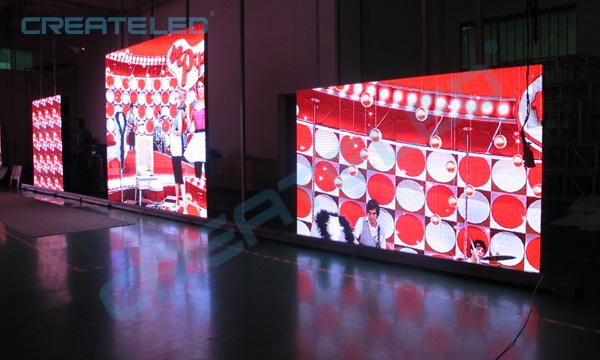

CreateLED AirLED-5 Black Face, combining ultra-lightweight design with remarkable high-performance and cost-efficient, this LED display quickly became the most popular type during 2011-2012. With output of 1, 500 Nits and 16 bit color processing, this LED video display is sure to deliver the super amazing image quality in any indoor setting.
Each AirLED-5 panel measures an standard of 500mm X 500mm in size with a thickness of just 65mm including the intelligent louver, giving an ultra light weight display of only 7kg per panel (28kg per square meter only). It's an ideal solution for applications which the weight loading limited, and the maximum creative freedom is needed.
Key Benefits
1. Budget friendly product, ideal for basic rental and fixed installations.
2. Extremely close view distances and wide view angles.
3. Silent operation, little heat generated (no fans).
4. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
5. Lightweight and seamless, precision extruded aluminum section structure.
6. Real white, brilliant colors, breathtaking grayscale.
Ideal For: Events
Concert TouringCasinoPub & ClubTheater and ArtsTV ShowsCar Shows
Mechanical
Module size: 250mm X 250mm
Panel size: 500mm X 500mm X 65mm
Panel weight: 7kg
Weight per m2: 28kg
Support frame in aluminum
Cooling: Natural airflow(fan less design)
Video Display
LED type: Black Face SMD 3 in 1
Resolution: 96 X 96 pixel/panel
Pixel pitch: 5.2mm
LED population: 36, 864 LED/m2
Brightness: 1, 500 Nits
Drive method: 1/8 scan method
Lifetime(50% brightness): 100, 000 h
Colors: 281 trillion
Gray scale: 16 bit
Refresh rate: 600~2, 000 Hz
Viewing angle: H: 160° , V: 100°
Dead Pixel Ratio: <0.0003
Electrical
Power supply: AC 220-240 V, 50/60 Hz
Power consumption: Avg 80 W/panel
MTBF ≥ 1, 000 H
Ambience working temperature: -20~55
Ambience humidity: 85% at 25, 65% at 40
Control System
Sender Box input: USB connector
Sender Box output: RJ45 connector
Connection between PC and Sender Box: USB cable
Supported video input: DVI/HDMI/SDI
Software functions: Display configuration, intensity adjustment, color calibration, content management, and system settings.
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
