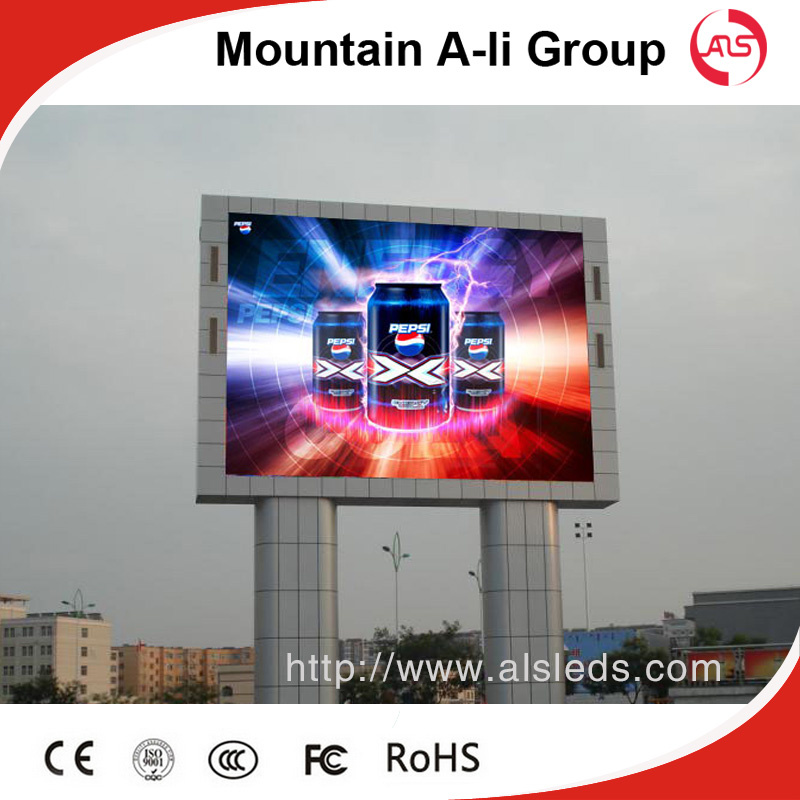

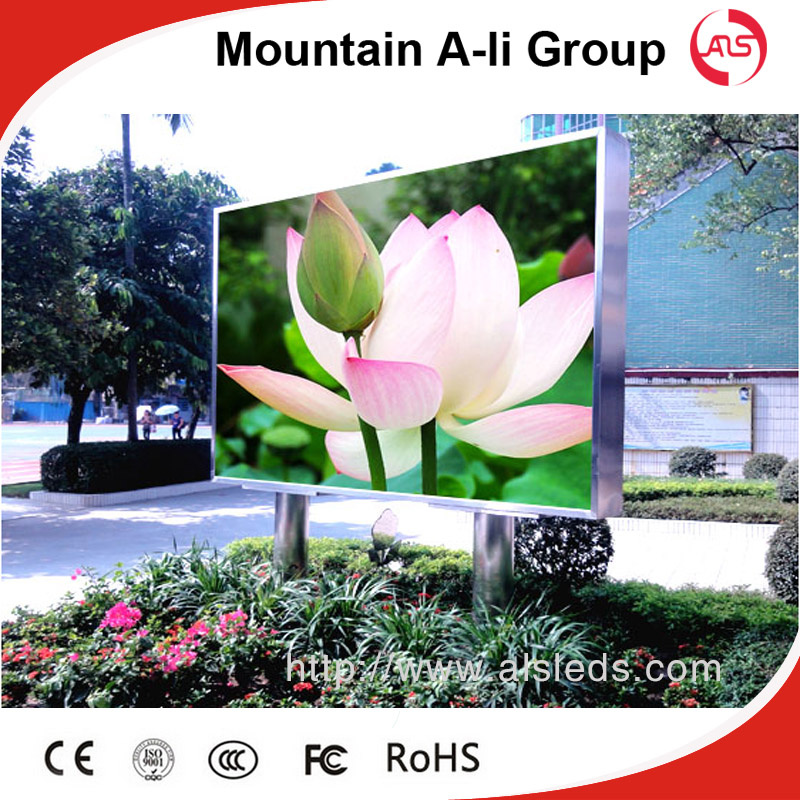

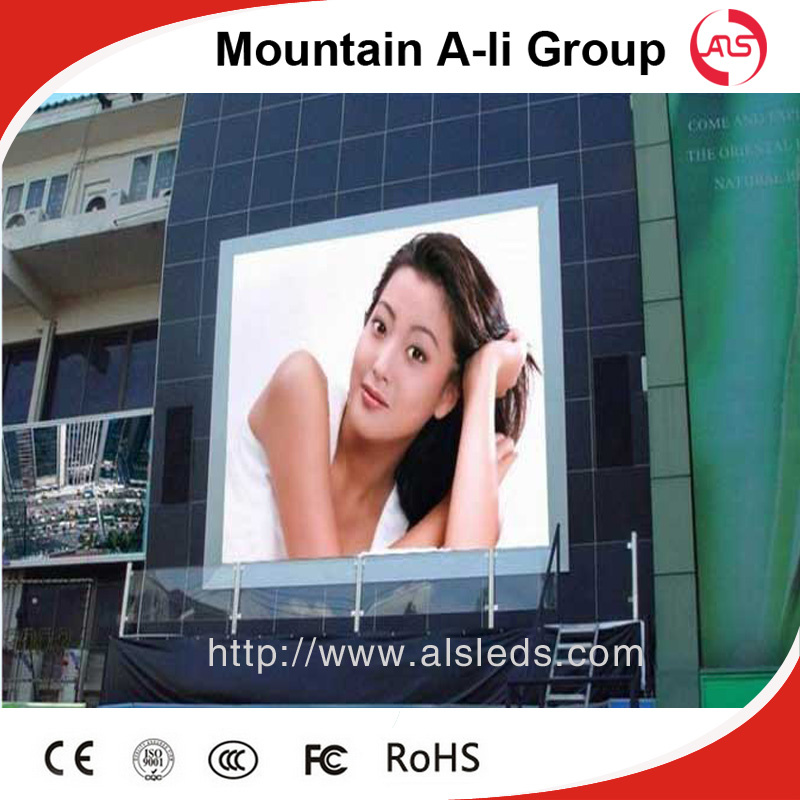

P8 SMD Outdoor Full Color LED Display1. Large viewing angle2. Light weight
3, ISO9001,CE , CCC,ROHS Certificates
4.Long lifespan
5.High brightness Our service 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display. Additional Info1.Trademark:Mountain A-Li
2. Packing:Woodencase and Flight Case
3.Standard:According to cabinet size and module quantity need
4.Origin:China Dongguang Shenzhen
5.HS Code:8531200000
6.Production Capacity:2000 Square Meters/Month
Parameter| The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | p8 Outdoor Full Color LED Module |
|
| Module size | 256mm*128mm |
|
| Pixel pitch | 8mm |
|
| Pixel density | 15265dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 32dots(W)*16dots |
|
| Module maximum power consumption | 25W |
|
| Module Thickness | 2.8CM |
|
| Module Weight | 0.55kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/4scan |
|
| Interface | HUB75 |
|
| Brightness | ≥7500cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 768mm*768mm |
|
| Module quantity | 18pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 96*96dots |
|
| Optimal viewing distance | 8M~50M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 350W/H |
|
| Maximum power consumption | ≤600W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900 |
|
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
