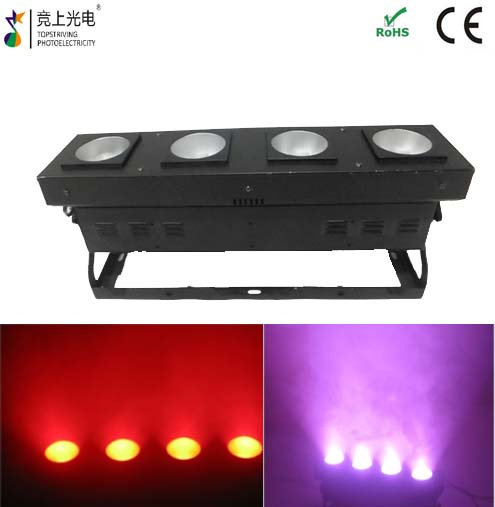

COB LED BAR RGBW 4 is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.COB LED BAR RGBW 4
**safety wires included;
*Power in powerCON/blue, Power out powerCON/grey equipped;
*blue LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;
*four dimming modes: linear, S-curve, Square law, Inverse square law;
*molded aluminium plus silent fans for excellent ventilations;
*PFC electronic power supply;
*Equipped with 4*COB RGBW FOUR IN ONE 40W , total 160W,50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*molded reflector for very even projections;
AC 100-240V 50/60Hz
Power consumption: 170W
beam angle 20°,field angle 45°
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
5/11/23 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20ºC to 40ºC
Hanging brackets included: floor stand
Net weight: 6.80Kgs
Dimensions: 565*180*252mm(L*W*D)(hanging bracket included)
INNER PACKING CARTON DIMENSIONS:62*28*36cm
GROSS WEIGHT:7.80kgs
DMX FUNCTIONS
5-CHANNEL MODE
Channel 1 -red from darkness to full brightness
Channel 2 -green from darkness to full brightness
Channel 3 -blue from darkness to full brightness
Channel 4 -white from darkness to full brightness
Channel 5 -master dimmer from darkness to full brightness
11-CHANNEL MODE
Channel 1 -red from darkness to full brightness
Channel 2 -green from darkness to full brightness
Channel 3 -blue from darkness to full brightness
Channel 4 -white from darkness to full brightness
Channel 5 -master dimmer from darkness to full brightness
Channel 6 -strobe
Channel 7 -dimmer modes
Channel 8 - dimmer durations
Channel 9 - color macros
Channel 10 -color changing
Channel 11 - color fades
23-CHANNEL MODE
Channel 1 -red 1 from darkness to full brightness
Channel 2 -green 1 from darkness to full brightness
Channel 3 -blue 1 from darkness to full brightness
Channel 4 -white 1 from darkness to full brightness
Channel 5 -red 2 from darkness to full brightness
Channel 6 -green 2 from darkness to full brightness
Channel 7 -blue 2 from darkness to full brightness
Channel 8 -white 2 from darkness to full brightness
Channel 9 -red 3 from darkness to full brightness
Channel 10 -green 3 from darkness to full brightness
Channel 11 -blue 3 from darkness to full brightness
Channel 12 -white 3 from darkness to full brightness
Channel 13 -red 4 from darkness to full brightness
Channel 14 -green 4 from darkness to full brightness
Channel 15 -blue 4 from darkness to full brightness
Channel 16 -white 4 from darkness to full brightness
Channel 17 -master dimmer from darkness to full brightness
Channel 18 -strobe
Channel 19 -dimmer modes
Channel 20 - dimmer durations
Channel 21 - color macros
Channel 22 -color changing
