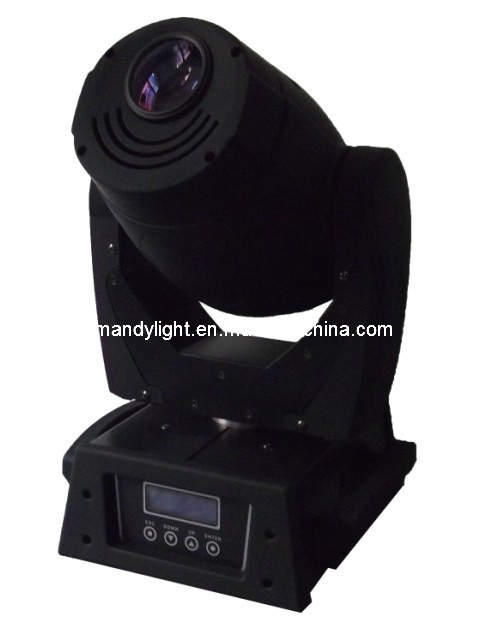

Detailed description of Property Of LED 120W Moving Head Light
1. Voltage: 100-240V, 50/60Hz
2. Power Consumption: 1 PC+White(120W, 50000hours)
3. Drive Current: 6A
4. Control: LCD display for auto, sound, custom and DMX mode
DMX512 standard international signal
5. Channel: 16 DMX channels
6. Focus: Electronic focus
7. Dimmer: 0~100%
8. Strobe: Variable speed
9. Iris: Electronic linear iris
10. Prism: Rotating 3-facet prism
11. Pan: 540°
12. Tilt: 270°
13. Pan/Tilt resolution: 8-16 bit
14. Special: Pan/Tilt movement blackout User-selectable pan/tilt ranges
15. Gobo Wheel 1& 2: 1 rotating gobo wheel and 1 static gobo wheel
Gobo spin at variable speeds
Gobo wheel with gobo shake
Gobo-flow effect
Bi-directional rotation
16. Color Wheel: 7 colors+white
Rainbow color spin at variable speeds
17. Programming: Date input: Locking 3-pin XLR male scoket, Date output: Locking 3-pin XLR female scoket
Date in configuration: Pin 1 shield, pin2(-), pin3(+)
255 user-programmable steps without DMX controller
18. Other features: Remote fixture reset& vector speed channel
Move-in-black for pan/tilt
Built -in automated programs
Built-in sound activated programs
User-selectable pan/tilt ranges
Automatic pan& tilt correction
User-selectable basic or advanced operating DMX modes
19. Housing: Flame-retardant plastic
20. Color: Black
21. Fixture Connection: Data in/out, Power in
22. Cooling: Forced convection
23. Environment: Dry location
24. Max ambient Temp: 45 degree
25. Net Weight: 12KG
26. Packing Size: 490*370*375mm
27: Gross Weight: 15KG
We have more styles, contact us to get more information about LED Moving Head Light.
|
Voltage |
100-240V, 50/60Hz |
|
Power consumption |
1 PC+White(120W, 50000hours) |
|
Control |
LCD display for auto, sound, custom and DMX mode DMX512 standard international signal 16 DMX channels |
|
Focus |
Electronic focus |
|
Dimmer |
0~100% |
|
Strobe |
Variable speed |
|
Iris |
Electronic linear iris |
|
Prism |
Rotating 3-facet prism |
|
Pan |
540° |
|
Tilt |
270° |
|
Pan/Tilt resolution |
8-16 bit |
|
Special |
Pan/Tilt movement blackout User-selectable pan/tilt ranges |
|
Gobo Wheel 1& 2 |
1 rotating gobo wheel and 1 static gobo wheel gobo spin at variable speeds gobo wheel with gobo shake Gobo-flow effect Bi-directional rotation |
|
Color Wheel |
7 colors+white
Rainbow color spin at variable speeds |
|
Programming |
Date input: Locking 3-pin XLR male scoket Date output: Locking 3-pin XLR female scoket Date in configuration: Pin 1 shield, pin2(-), pin3(+) 255 user-programmable steps without DMX controller |
|
Other features |
Remote fixture reset& vector speed channel Move-in-black for pan/tilt Built -in automated programs Built-in sound activated programs User-selectable pan/tilt ranges Automatic pan& tilt correction User-selectable basic or advanced operating DMX modes |
|
Housing |
Flame-retardant plastic |
|
Color |
Black |
|
Fixture Connection |
Data in/out, Power in |
|
Cooling |
Forced convection |
|
Environment |
Dry location |
|
Max ambient Temp |
45 degree |
|
Net Weight |
12KG |
|
Packing Size |
490*370*375mm |
|
Gross Weight |
15KG |
