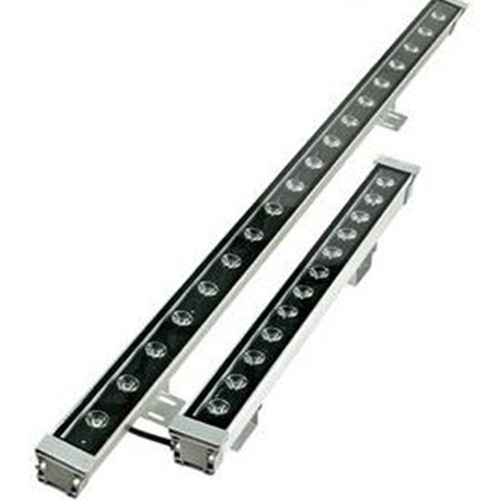

Thick aluminum housing DC 24V 36W led wall washer
LED wall washer description:
Led wall washer, led wall washer light, led wall washer housing, dmx rgb led wall washer, rgb led wall washer, outdoor led wall washer, outdoor led lights wall washer, ip67 led wall washer, 72w led wall washer, wall washer led, led rgb wall washerled outdoor wall washer rgb light.
LED wall washer features:
Material: Waterproof aluminum alloy, 3mm euphoric toughened glass;
Color: Single color and RGB full color;
Voltage: DC24V/;
Constant Current: R/G/B /w 320mA, max current: 2A;
Projection distance: 12-45 meters;
Viewing Angle: 8-120 degrees;
IP Rank: IP65;
Control Method: DMX512 controller optional;
Life Span: > 100, 000 hours.
LED wall washer application:
A. Indoor and outdoor sculpted artworks, easily concealed in structures or plants.
B. Above ground fountains.? Architectural entryways, mounted under canopies or eaves.
C. Signage, mounted directly to structures or on stems.
D. Concert stage lighting, mounted on standard C-clamps.
E. Public parks, mounted in structures or on poles.
F. Stores, restaurants and nightclubs ground or effects lighting including interior, exterior walls and columns, exposed or concealed.
G. RGB types create colorful backgrounds for window and store display lighting; AWB, types washes to match existing lighting
Temperatures while allowing future color, temperature changes.
H. High rises, building stories, entryways, facades, detail with a single unit or line of units.
I. Statues, trees, bridges, monuments, arches, historic sites
Payment & Trade Terms:
1. Trade terms: FOB Shenzhen.
2. Shipping method: As your requests, By Express( DHL, UPS, TNT, Fedex ), By Air, By sea are optional.
3. Lead time: Production: 10~15days,
Sample: 5~7 working days once we confirm the order or get deposit.
4. Payment Terms: T/T only 30% deposits before production, 70%balance to be paid before deliver. 100% T/T for the samples.
5. Packing: Routine standard package
Item No. | Size (W*H*Lmm) | Material | Voltage(V) | IP | LED chip | Power(W) |
|
BYWWL-001 | 46×46×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 12W |
18W |
24W |
36W |
BYWWL-002 | 51×58×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
72W |
BYWWL-003 | 55×70×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
BYWWL-004 | 50×57×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
BYWWL-005 | 62×63×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
BYWWL-006 | 70×72×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
36W double rows |
BYWWL-007 | 75×65×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
72W |
BYWWL-008 | 76×76×1000mm | Using advanced thick aluminum housing with oxide coating + Tempered glass cover | AC/DC24V\85V-265V | IP65 | Epistar | 24W |
36W |
