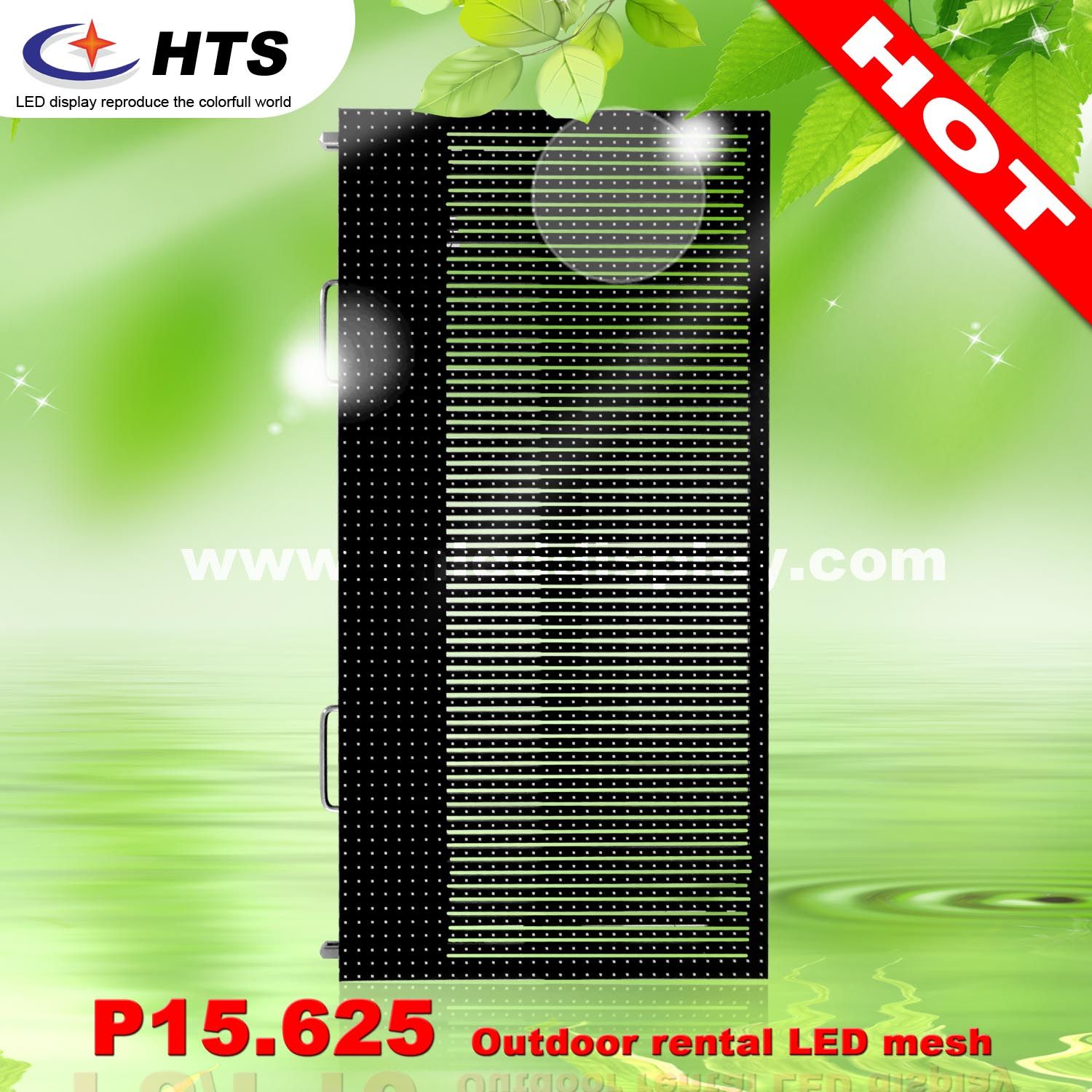

| Prod Model: |
P15.625 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1000X500mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Stage Performance |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
CCC |
| Pixel Configuration: |
SMD3535 |
| Pixel Pitch: |
15.625dots/M2 |
| Pixel Density: |
4096dots/M2 |
| Average Power Consumption: |
800W/Panel |
Product Description
Features:
1. Cabinet is made of aluminum alloy section bar and light weight.
2. High light transmittance can reach different demands of the stage design.
3. Fast install, especially for large area LED screen connection.
4. Single light bar can be disassembled independently and easy maintenance.
5. Fast locks are installed in four sides and easy to install and no need tools.
6. Rainproof design and suitable for indoor and outdoor rental occasions.
Applications:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
Installation:
|
Model |
P15.625 |
|
Pixel pitch |
15.625mm |
|
Pixel configuration |
1R1G1B |
|
LED type |
SMD3535 |
|
Module size |
10x500mm |
|
Module resolution |
1x32 |
|
Cabinet resolution |
64x32 |
|
Cabinet size |
1000x500mm |
|
Density |
4096dots/m2 |
|
Brightness |
≥4000 NIT |
|
Scan method |
Static Scan |
|
Best view distance |
≥16m |
|
Max. power consumption |
800W/panel |
|
Ave. power consumption |
380W/panel |
|
Cabinet Weight |
11.5Kg |
|
Grey scale |
65536 step |
|
Color |
281 billion |
|
Refresh rate |
≥2000Hz |
|
Best view |
Vertical: 120°, Horizontal: 120° |
|
Color temp |
7500K |
|
Frame frequency |
≥60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110/220v 50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
IP65(Front), IP54(Back) |
