| Prod Model: |
outdoor p12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
12mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
ETL |
| Pixel Density: |
6944 dot / m² |
Product Description
1. It use die casting aluminum box, so easy assembly and disassembly;
2. The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions;
3. High definition, it can show very nice and real images with daytime sunshine in outdoor;
4. With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly;
5. The advertising contents can be changed at any time, for different customers and various advertisements;
6. With high efficient optical fiber transmission system, it can reduce signal delay caused by long transmission distance, which ensure the consistency of the display;
7. You can control all display information by remote network, and change the screen information by clicking the mouse, in order to achieve the network clustering of urban and regional ads;
8. With environmental monitoring systems, you can know the display operation anytime, anywhere;
9. With multi function card, it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function;

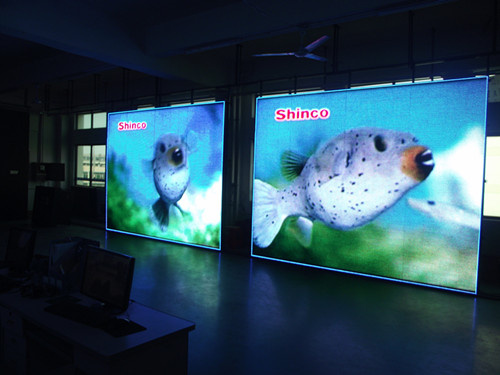

10. Applicable for outdoor, widely used in outdoor advertising and media promotion, such as Exhibition, Government information or Recruitment Information, etc.
|
The technology parameter of P12 outdoor |
|
Number |
Item |
P12 |
|
1 |
Pixel pitch |
12mm |
|
2 |
Size of modual |
96mmX 192mm |
|
3 |
Resolution of modual |
8X16 |
|
4 |
Density of pixel |
6944dots/m2 |
|
5 |
Pixel configuration |
1R1G1B |
|
6 |
Red wavelength |
625± 2nm |
|
7 |
Green wavelength |
525± 2nm |
|
8 |
Blue wavelength |
470± 2nm |
|
9 |
Colors |
16777216 |
|
10 |
Best viewing distance |
≥ 12m |
|
11 |
Horizontal viewing angle |
140° |
|
12 |
Maximum power consumption |
≤ 500w/m 2 |
|
13 |
Brightness |
≥ 800cd /m 2 |
|
14 |
Gray scale |
16bits per color |
|
15 |
Color temperature |
6500k |
|
16 |
Control method |
Synchronization & Asynchronization |
|
17 |
Driving method |
1/4scanning |
|
18 |
Frame frequency |
60Hz |
|
19 |
Refresh frequency |
≥ 350Hz |
|
20 |
Working voltage |
AC220V/110V± 10% |
|
21 |
IP grade |
IP67(adjustable) |
|
22 |
Working temperature |
--20º C-+80º C |
|
23 |
MTBF |
> 10000 hours |
|
24 |
Life span |
> 100, 000 hours |
|
25 |
Defects rate. |
≤ 0.00001(Led display line standard< 0.0001) |
|
26 |
Computer operation system |
Win XP/Vista/ Win 2000/WIN7ect. |
|
27 |
Video signal |
RF, S-Video, RGB, RGBHV, YUV, YC. ect |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
