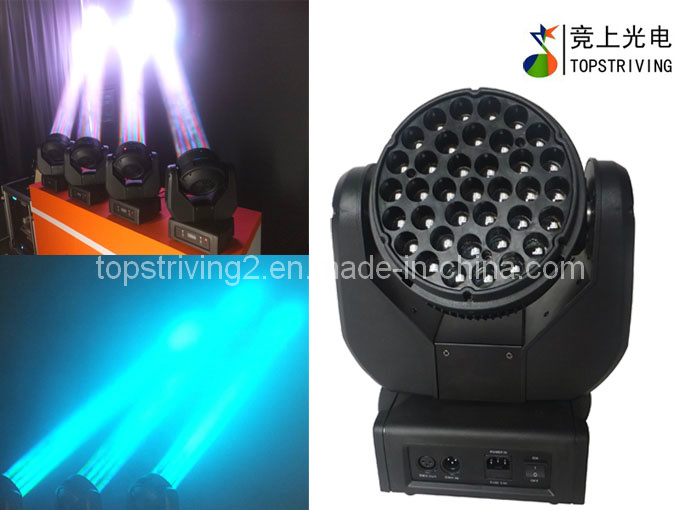

Stage Moving Head Lighting / LED Moving Beam 37 Light with 37*3W USA CREE XPE
TECHNICAL SPECIFICATIONS:
Power supply: 90-240 AC 50/60 Hz;
Power consumption: 150W;
100, 000 hours of LED life;
3W red/green/blue each 13/12/12 PCS;
DMX-control-channels: 9/12;
DMX-512-connection: 3-pin XLR;
Operational modes: DMX, Master/Slave, Stand Alone & Sound Active;
16 bit smooth and precise resolution for pan/tilt movement;
X/Y auto repositioning, 0-100% linear dimmer;
Tilt: 270-degree, LCD DMX menu system;
Fan cooled, Shutter: Pulse effect; Random strobe slow to fast;
Pan: 540-degree;
Stepper motors with micro stepping;
Dimensions: 300*180*380mm;
Weight: 5.70kgs;
Maximum ambient temperature ta: 45° C;
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
Function of the control channels |
9-channel mode |
Channel 1 |
Horizontal movement (Pan) |
Channel 2 |
Vertical movement (Tilt) |
Channel 3 |
master dimmer from 0-100% |
Channel 4 |
red dimmer from 0-100% |
Channel 5 |
green dimmer from 0-100% |
Channel 6 |
blue dimmer from 0-100% |
Channel 7 |
color macros |
Channel 8 |
strobe from slow to fast |
Channel 9 |
pan/tilt blackout, preset shows, sound active and reset |
0-19 |
not occupied |
20-39 |
pan/tilt blackout |
40-59 |
pan/tilt off |
60-79 |
fan 1 |
80-99 |
fan 2 |
100-119 |
fan 3 |
120-139 |
fan 4 |
140-149 |
preset show 1 |
150-179 |
preset show 2 |
180-199 |
edited programs |
200-219 |
sound active |
220-239 |
reset |
240-255 |
not occupied |
|
12-channel mode |
Channel 1 |
Horizontal movement (Pan) |
Channel 2 |
pan fine 16 bit |
Channel 3 |
Vertical movement (Tilt) |
Channel 4 |
tilt fine 16 bit |
Channel 5 |
pan/ tilt running speed adjustments |
Channel 6 |
master dimmer from 0-100% |
Channel 7 |
red dimmer from 0-100% |
Channel 8 |
green dimmer from 0-100% |
Channel 9 |
blue dimmer from 0-100% |
Channel 10 |
color macros |
Channel 11 |
strobe from slow to fast |
Channel 12 |
pan/tilt blackout, preset shows, sound active and reset |
0-19 |
not occupied |
20-39 |
pan/tilt blackout |
40-59 |
pan/tilt off |
60-79 |
fan 1 |
80-99 |
fan 2 |
100-119 |
fan 3 |
120-139 |
fan 4 |
140-149 |
preset show 1 |
150-179 |
preset show 2 |
180-199 |
edited programs |
200-219 |
sound active |
220-239 |
reset |
240-255 |
not occupied |
